NBC SERIES MIG Welder
Request a Quote
Welding machine manufacturerSince 1988

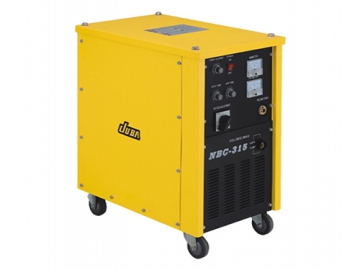

NBC SERIES MIG Welder, Metal Inert Gas Welding
Features
- The NBC series MIG welder is a single phase, fan-cooled, portable wire welding machine for MIG welding.
- This MIG welder is designed for continuous and spot welding applications.
- The spot welding time is electrically controlled.
- Users can weld a wide array of materials, including steel or stainless steel.
- This series comes with a complete line of MIG-MAG welding accessories.
Parameters
| Model | NBC-250 | NBC-315 | NBC-250F | NBC-315F |
| Power Voltage(v) | 380 | 380 | 380 | 380 |
| Frequency(hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Input Power(kva) | 9.8 | 14.2 | 9.8 | 14.2 |
| Max No-load voltage In Dc (v) | 18-34 | 18-36 | 18-34 | 18-36 |
| Current Range Input Dc(a) | 60-250 | 70-315 | 60-250 | 70-315 |
| Duty Cycle( %) | 35 | 35 | 35 | 35 |
| Welding Wire Diameter(mm) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 |
| Insulation Class | H | H | H | H |
| Measurement(mm) | 760*440*730 | 760*440*730 | 770*440*1030 | 770*440*1030 |
| Weight(kgs) | 105 | 110 | 116 | 120 |
| Cod.(no) | 870026 | 870027 | 870032 | 870033 |
