FEPT Material Handling Equipment
Stand-on pallet jack with 2000/3000kg capacity, 1150/1220mm fork length, 85mm to 125mm lifting height
The fully electric pallet truck is a reliable and efficient solution for handling heavy pallets in indoor applications, including loading, unloading, and horizontal transport. Designed to withstand heavy-duty tasks such as pallet moving, high-speed load transportation, and loading dock operations, this pallet truck is a valuable investment for businesses aiming to enhance efficiency while protecting staff from strains and injuries. The shock-absorbing platform ensures operator comfort, allowing them to stand safely behind the unit for convenient and effortless operation.
Available in multiple versions with load capacities of 2,000kg and 3,000kg, it is an ideal choice for enhancing productivity in material handling operations.
- 2000/3000kg
- 85mm to 125mm
Specifications

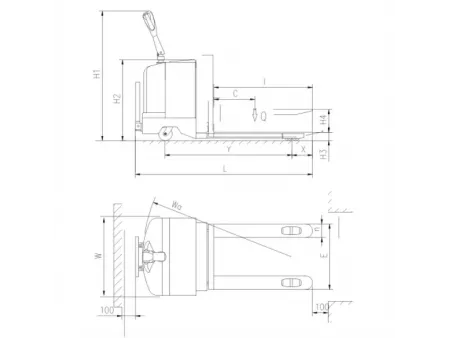

| Model Number | FEPT-20 | FEPT-30 | |
| Rated Capacity (Q) | kg | 2000 | 3000 |
| Load Center (C) | mm | 600 | 600 |
| Max. Fork Height (H4) | mm | 125 | 125 |
| Min. Fork Height (H3) | mm | 85 | 85 |
| Handle Height (H1) | mm | 1400 | 1400 |
| Frame Height (H2) | mm | 890 | 890 |
| Fork Size (l×n) | mm | 1150×160 | 1220×160 |
| Fork Width (E) | mm | 570(680) | 570(680) |
| Min. Turning Radius (Wa) | mm | 1620 | 1900 |
| Wheel Base (Y) | mm | 1350 | 1500 |
| Front-Wheel Distance (X) | mm | 385 | 160 |
| Max. Travel Speed (No Load) | km/h | 4.5-6 | 4.5-6 |
| Max. Travel Speed (Full Load) | km/h | 4-5 | 4-5 |
| Max. Gradeability | % | 8-10 | 8-10 |
| Driving Motor | V/kW | 24/1.2 | 24/1.3 |
| Lifting Motor | V/kW | 24/2.2 | 24/2.2 |
| Battery | V/Ah | 24/210 | 12×2/210 |
| Charger | V/A | 24/20 | 24/20 |
| Handle Operation | / | Electric power steering | |
| Overall Length | mm | 2000 | 2030 |
| Overall Width | mm | 820 | 820 |
| Overall Height | mm | 1400 | 1400 |
| Overall Net Weight | kg | 650 | 700 |
Features
- Shock-absorbing stand-on platform is designed to reduce operator fatigue, providing enhanced comfort during long driving hours.
- Integrated control handle allows all functions to be performed easily with one hand.
- Features three braking functions: release braking, reverse braking, and emergency braking, for maximum safety during operation
- Emergency power cut-off switch to ensure operator’s safety by allowing immediate power disconnection in case of faults.
