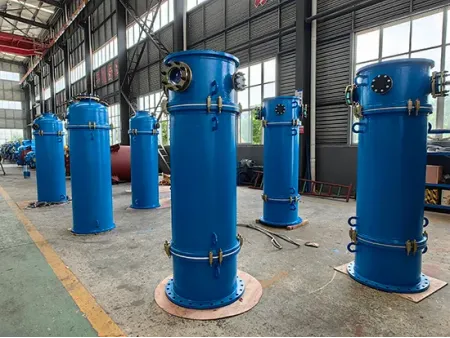

Glass Lined Column

Request a Quote

Website: http://glasslining-en.com/3-glass-lined-column.html

Corrosion resistant columns for handling distillation, extraction and absorption applications

Glass lined columns are suitable for demanding industrial processes where materials can be highly corrosive or reactive. The steel shell gives the column the strength to handle pressure, while the glass lining protects it from corrosion and keeps the process media from touching the metal. This design makes the corrosion resistant column safer, more stable, and longer-lasting for processes such distillation, absorption, and extraction. They are commonly used in distillation, extraction, absorption, and other separation or treatment processes.

These corrosion resistant columns meet GB25025-2010 or ASME standards, ensuring reliable performance and compliance with industry requirements. The design brings together the chemical inertness of glass with the strength of a steel structure, resulting in equipment that is both durable and resistant to corrosion.

Besides the standard glass lined column models, customized solutions can be provided, including distillation, extraction, and absorption columns, as well as other glass lined process equipment tailored to specific operating conditions.

Features

Glass lined columns can handle a wide range of corrosive media, including strong acids, oxidizing agents, and organic solvents. The only limitation is with solutions that contain fluorine ions, which are not suitable.
The inner glass surface is smooth and non-porous, making it resistant to staining and much easier to clean compared to bare metal.
Because the lining is impermeable, it prevents cross-contamination between batches. At the same time, the chemical stability of glass keeps the purity, color, and properties of the stored or processed materials intact.

Technical Parameters

Design temperature	0℃~ 200℃
Design pressure	Column interior	FV-0.25MPa
Design pressure	Jacket	0.6MPa

DN	D (mm)	Max. length L (mm)	Max. section length L1 (mm)	Assembly method
200	219	3000	-	Assembled with split flange
250	273	3000	-
300	325	3000	500
400	406	3000	750	Assembled with clamps
500	508	3000	1000
600	600	4000	1400
800	800	4500	2000
1000	1000	4500	2500
1200	1200	6000	4000
1400	1400	6000	4000
1600	1600	6000	4000
1800	1800	6000	4000
2000	2000	6000	4000

Note: Nozzles and accessories for the columns can be customized based on specific customer requirements.

Glass Lined Columns in Operation at Customer Site

We also provide for Glass-Lined Equipment

Can glass lined columns be customized? What types are available?

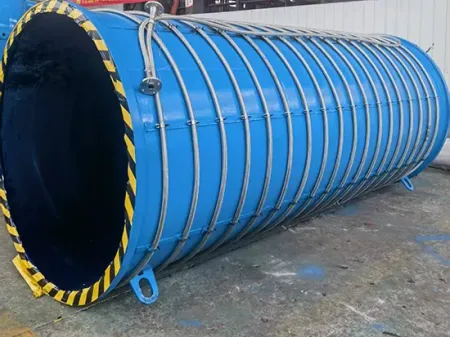

Yes. Customization is available for different column sections, including hose-wound glass lined sections. Depending on project needs, tailored equipment such as rectification towers, extraction towers, absorption towers, and other non-standard glass lined equipment can also be supplied.

What features of glass lined columns ensure performance and material quality?

One of the main advantages is the smooth inner surface, which doesn’t easily stain and is simple to clean. Since the glass lining is impermeable, it prevents cross-contamination, and its stability helps preserve the purity, color, and flavor of the materials during processing.
