Rigid Borescopes
Request a Quote

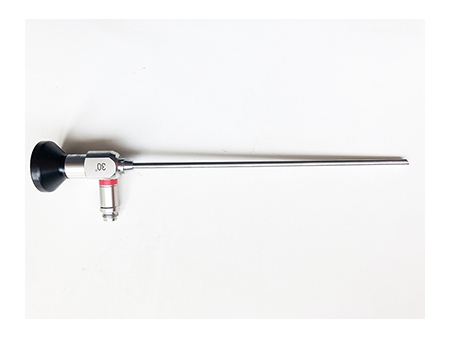

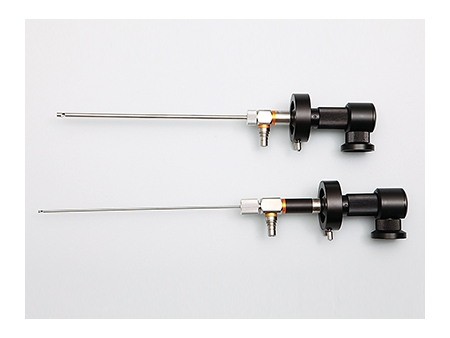

The industrial rigid borescopes are available in a wide array of diameters, working lengths, view direction, and magnification view field. The stainless-steel insertion tube is usable at temperatures between -20℃ and 150℃ (-4 to 302°F). Video recording is available by connecting a CCD camera.
- Probe Diameter: 6.0mm/4.0mm/3.0mm/2.7mm/1.8mm
- Angle of view: Forward/side with 90°/70°/30°/0° view
- Material: Made from 304 stainless steel, waterproof, oil resistant, wear-resistant
- Resolution: ≥ 20.1lP/mm (object distance 4mm);
- Field of View ≥ 90 ° Dof: 3mm~200mm
Specifications
Probe Parameters
| Outer diameter | Length | View angle |
| Ø1.8mm | 175mm | Forward view 0° |
| Ø2.7mm | 175mm or others | Forward view 0° Side view: 30°, 70° |
| Ø3.0mm | 175mm or others | |
| Ø4.0mm | 175mm or others | Forward view 0°Side view: 30°, 70°, 90° |
| Ø6.0mm | 175mm or others | |

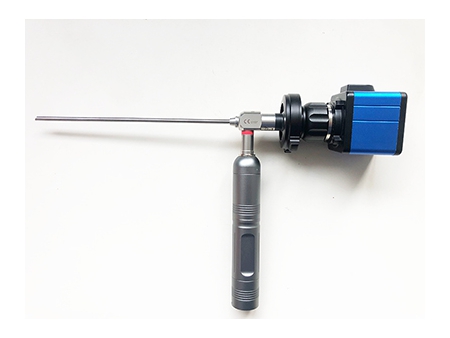

| Optional | Handheld flashlight Desktop light source Optical C-Mount 2 megapixel HD industrial camera 10.1 inch HD endoscope screen | |
Parameters

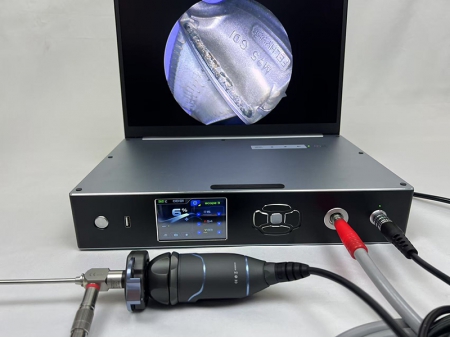

| Overall Structure | 15.6-inch HD large LCD screen PC host with a 3.5-inch color touch sub-screen | Probe | Supports rigid borescopes / fiber borescopes |
| CCD Camera | 1080P 4K HD camera system | Light Source Type | >5,500,000 Lux, 100-level adjustable integrated internal light source |
| Screen Size | 15.6-inch HD LCD main screen 3.5-inch color touch sub-screen | Power Supply | AC100-240V/50-60Hz |
| Screen Resolution | 1080P HD | Storage Medium | Supports U-disk, HDMI, USB, and DVI interfaces |
| Probe Material | Supports stainless steel rigid tubes and fiber scopes | Menu Language | Supports Chinese, English, and multiple other languages |
| Video Output | HDMI, USB, DVI, CVBS | Host Dimensions | 361 x 232 x 78 mm |
| Light Guide | Configured with a 1.5-meter high-brightness light guide fiber | Overall Weight | 2.8 kg |
| Host Interfaces | USB3.0*2, HDMI*1, DVI*1, CVBS*1, fiber interface*1, CCD camera interface*1 | IP Rating | Probe and scope line can withstand IP68 waterproof and dustproof |
| Operating System | Touch screen control; Auto/Manual/Preset modes for AWB; Up to 6 sets of preset image color schemes; Supports zoom in/out, photo/video, image processing, one-key freeze, color adjustment, brightness adjustment, etc. | ||
Configuration List
- 15.6" HD desktop optical endoscope host screen (with built-in light source) *1 unit
- 2-megapixel HD CCD camera handpiece *1 unit
- High-brightness fiber optic light guide *1 unit
- HDMI HD video cable *1 unit
- Power adapter *1 unit
- 64G memory card *1 unit
- Instrument case *1 unit
