Two Color TPR Sole Injection Molding Machine
Request a Quote

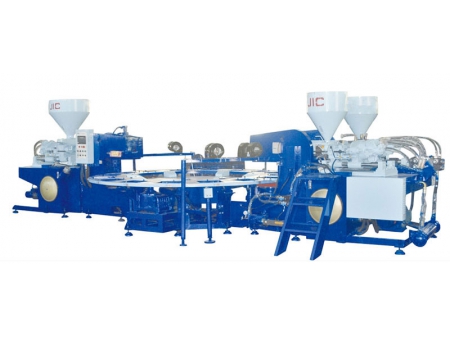

Rotary injection molding machine for producing plastic shoe soles
Apart from EVA and PVC footwear machines, JIC MACHINE also provides TPR shoe making machines. Two color TPR sole injection molding machine is the popular products at home and abroad and it is mainly used to produce TPR one-color and two-color soles.
- The TPR injection machine is designed for large-sized molds;
- It’s easy and convenient to operate;
- We provide optional mold cooling units and the servomotor system.
Material: PVC, TPR
Applications:

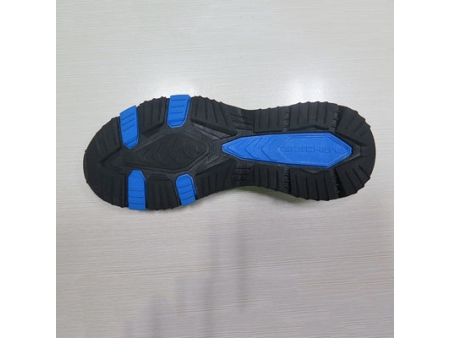

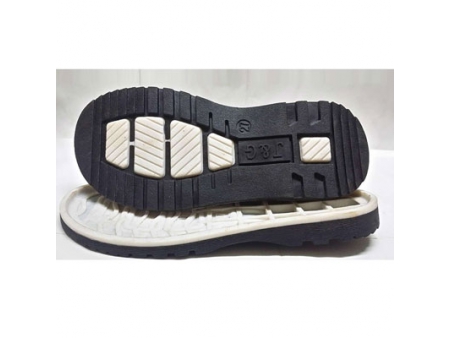

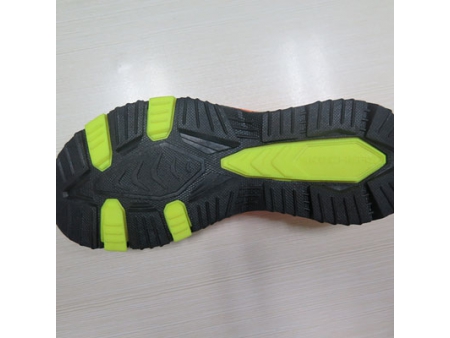

One-color and two-color soles, thin soles and soles of kids shoes
Technical Specifications
| Item | Unit | Specifications | ||
| Model | | | | |
| Raw material | PVC/TPR | PVC/TPR | PVC/TPR | |
| Number of stations | 12 | 16 | 20 | |
| Screw diameter | mm | Ø60,Ø50 | Ø60,Ø50 | Ø60,Ø50 |
| Screw rotational speed | RPM | 0-190 | 0-190 | 0-190 |
| Max. injection volume | cm³/cc | 565,300 | 565,300 | 565,300 |
| Rated injection pressure | kg/cm² | 0-120 | 0-120 | 0-120 |
| Clamping force | T | 60 | 60 | 60 |
| Motor power | kW | 15,11 | 15,11 | 15,11 |
| Power of electric heating | kW | 13,11 | 13,11 | 13,11 |
| Temperature setting | stage | 4 | 4 | 4 |
| Max. mold size | mm | 280*350*150 | 280*350*150 | 280*350*150 |
| Mold height | mm | 60-150 | 60-150 | 60-150 |
| Machine dimensions | mm | 7600*3000*1800 | 7700*3300*1800 | 8000*4000*1800 |
| Gross weight | kg | 9200 | 10000 | 11000 |
Features
- The major highlight of the TPR injection machine is energy-saving since it delivers large volume of output while using less energy;
- The TPR injection machine is used to produce TPR one-color and two-color soles and thin soles of kid shoes, sneakers and slippers;
- The system adopts an industrial interface, a PLC system and a touchscreen;
- The dual-ratio hydraulic control valve precisely controls the injection pressure and the rate of flow;
- Digital measurement ensures stable and reliable production performance;
- The panel function design enables easy and convenient operation;
We also provide three-color sole making machines that produce soles in up to three colors.
Contact us for more information about three-color sole injection molding machines.
