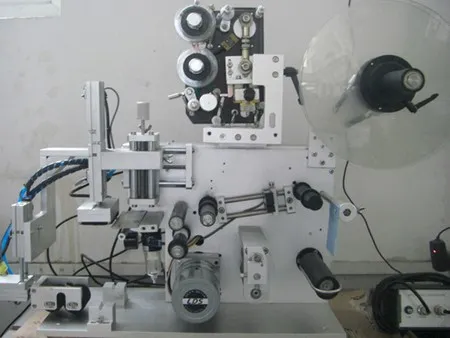

Semi-Automatic Flat Surface Labeling Machine
Request a Quote
Label applicator for flat containers, boxes or products with curved surfaces
The semi-automatic flat surface labeling machine is designed for labeling various flat surfaces. It can be adapted for curved, concave, and irregular surfaces by changing the labeling mechanism. This machine is widely used for labeling tags on small storage chips, electronic components, mobile phones, toy planes, etc. Custom shapes can be accommodated upon request.
Technical Specifications
| Model | YX-PL75 |
| Label Length | 10-60mm |
| Label Width | 5-70mm |
| Product Length | 20-200mm |
| Product Width | 20-180mm |
| Product Height | 0.2-75mm |
| Outer Diameter of Label Roll | ⌀240mm |
| Inner Diameter of Label Roll | ⌀76mm |
| Labeling Accuracy | ±0.2mm |
| Feeding Speed | 5m/min |
| Labeling Speed | 15-25pcs per minute |
| Machine Weight | approximately 67kg |
| Frequency | 50HZ |
| Voltage | 220V |
| Power | 145W |
| Machine Dimensions (L×W×H) | 550×420×780mm |
| Air Pressure | 0.4-0.6 MPa |
Packaging & Shipping
Applications
- Applicable Labels: Self-adhesive labels, electronic supervision codes, etc.
- Applicable Products: Suitable for flat, curved, circular, concave, convex surfaces, etc.
- Applicable Industries: Widely used in cosmetics, food, toys, daily chemicals, electronics, pharmaceuticals, hardware, plastics, etc.
- Optional Functions: a. Automatic feeding function b. Automatic collection function (depending on the product) c. Other functions based on customer requirements
Features
- Labeling precision up to ±0.2mm, meeting high-accuracy requirements. Suitable for small labels as tiny as 6-8mm.
- Automatically performs paper separation, label feeding, label sucking, labeling, and label covering. Operators only need to place and remove products.
- Built-in drive components with separate circuits and air lines to avoid anomalies.
- Advanced electronic control system using Panasonic PLC, Panasonic touch screen, Panasonic photoelectric sensor, and Leuze electronic eye sensor for label detection.
