Energy Storage Cabinets (240-350VDC)
The (240-350VDC) energy storage cabinets integrate a local BMS (Battery Management System) that continuously monitors battery voltage and temperature. In case of abnormal conditions, the system automatically disconnects the battery from the equipment to ensure safety.
The energy storage cabinet communicates in real time with the IPSCP cloud platform, which performs system analysis and monitoring. If any data irregularities or faults are detected, the platform issues a shutdown command, and the on-site system halts operation immediately.
The energy storage system also features a built-in fire protection design with an HFC-227ea (heptafluoropropane) fire extinguishing system. When the internal temperature reaches a preset limit, the system activates automatically, preventing damage to user facilities and ensuring safe operation.

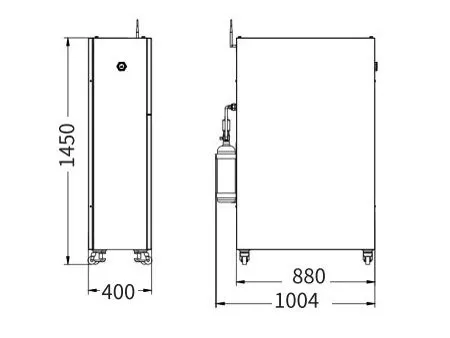

| Overall Dimensions | |
| Dimensions | 880*400*1450(±10)mm |
| Weight | 280(±10)kg |
| Protection Grade | IP65 |
| Battery System | |
| Battery Type | LiFeP04 |
| Rated Voltage | 307VDC |
| Voltage Range | 240V~350VDC |
| Nominal Capacity | 150kWh |
| Charge/Discharge Current | 30A (25℃)0.5C |
| Cooling Method | Forced air cooling |
| AC Side Output | |
| Rated Power | 8kW |
| Maximum Power | 8kW |
| Maximum Output Current | 39 A |
| Output Voltage | 380V/220V |
| Grid Voltage Range | 350~440V/180~276V |
| Grid Frequency Range | 45~55Hz |
| Power Factor | ±0.9 |
| Total Harmonic Distortion (THD) | < 3% (at rated power) |
