Antique-Style Color-Coated Steel Roofing Tiles

Request a Quote

Website: http://bltbuilding.com/4-2-pantile-metal-roofing-tiles.html

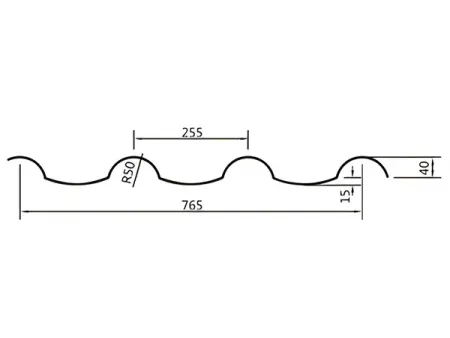

YX40-255-765

Tile effect roofing sheets combining undulating curves of traditional clay pantiles

Effective cover width: 765mm
Overall width of sheet: 1000mm
Length: 1m-12m (customizable)
Thickness: 0.4mm-1.0mm
Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet

These pantile-style metal tiles are finished with a baked-on coating that keeps their color rich and stable for up to 30 years, so the roof always looks fresh rather than aged. Because they are designed to handle different climates, they hold up well against changing weather conditions. On top of that, the panels are fully recyclable, offering a roofing option that is not only durable but also energy-efficient and environmentally conscious.

Applications

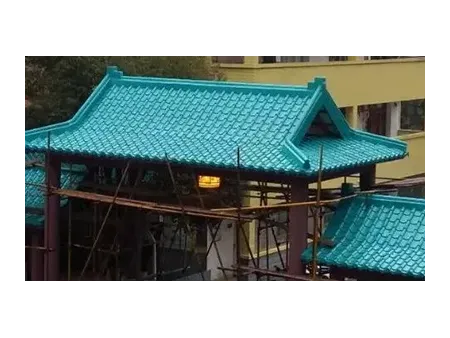

Ideal for residential houses, apartments, villas, hotels, resorts, real estate projects, urban renovation, scenic buildings, and wooden roof structures.

Specifications

Model	YX40-255-765
Effective cover width	765mm
Overall width of sheet	1000mm
Length	1m-12m (customizable)
Thickness	0.4mm-1.0mm
Material	Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/PVDF, etc.
Accessories included	A complete range of drip edge, stop end hip, ridge end cap, round ridge cap, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

These tiles are made from high-quality alloys like aluminum-magnesium-manganese and titanium-zinc, giving them a service life three to four times longer than traditional wave-shaped tiles.
They weigh only a tenth of clay tiles, yet they can withstand strong winds, heavy snow, rain, and hail without cracking.
The roll-formed metal structure strengthens the entire roof, which also improves seismic resistance.
They adapt well to different climates and can last for more than 50 years without the need for maintenance.
