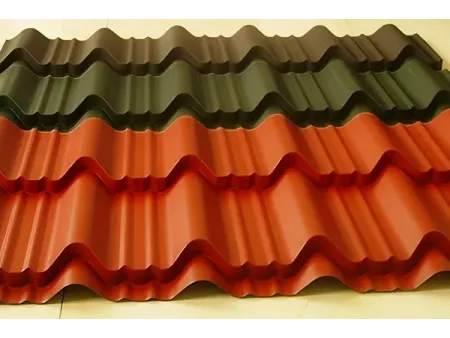

Metal Roofing Tiles

Request a Quote

Website: http://bltbuilding.com/4-1-metal-roofing-tiles.html

YX30-195-980

Tile effect roofing sheets with PVDF or PE coating

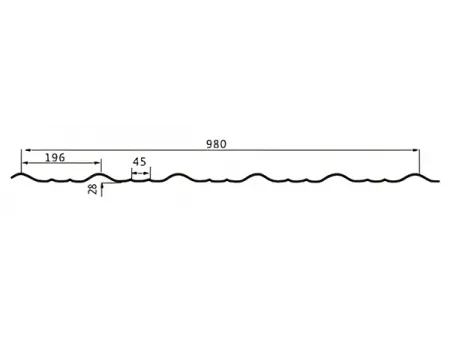

Effective cover width: 980mm
Overall width of sheet: 1200mm
Thickness: 0.4mm-1.0mm
Length: 1m-12m (customizable)
Material: Galvanized steel sheet, galvalume steel sheet, titanium zinc sheet, Al-Mg-Mn alloy sheet

These tile effect roofing sheets are made from aluminum-magnesium-manganese alloy and finished with a PVDF coating that protects the surface from fading, keeping the roof looking new even after decades of use. They are available in both standard and custom lengths, making it easier to fit different roof sizes while keeping a clean and uniform look.

Applications

Suitable for residential houses, apartments, villas, hotels, resorts, real estate projects, urban renovation, scenic buildings, and wooden roof structures.

Specifications

Model	YX30-195-980
Effective cover width	980mm
Overall width of sheet	1200mm
Thickness	0.4mm-1.0mm
Length	1m-12m (customizable)
Material	Galvanized steel sheet,galvalume steel sheet,titanium zinc sheet,Al-Mg-Mn alloy sheet
Metal sheet suppliers	Baosteel,BlueScope,Yieh Phui,Wah Tung,Alliance Steel,etc.
Color	Standard color custom color
Surface coating	PE/PVDF,etc.
Accessories included	A complete range of drip edge,stop end hip,ridge end cap,round ridge cap,etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

These roofing tiles use aluminum-magnesium-manganese alloy with a PVDF coating, which protects the surface from fading and keeps the roof looking new for decades.
Their lightweight design makes them easy to install while providing waterproof properties and weather resistance, with a service life of more than 50 years.
The roll-formed, one-piece structure strengthens the roof itself, improving overall stability and seismic performance.
With their elegant tile-effect design, they offer an attractive alternative to traditional clay tiles while maintaining durability and low maintenance.
