Description
The high speed carton folding and gluing line’s 800 type folder gluer machine uses servo motor control technology. Its maximum blank width is 800mm and the maximum processing speed is 500m/min. This machine is used for manufacturing straight line boxes, crash lock bottom boxes, 4 and 6 corner boxes, and other boxes with a length of 17.81m.

Application

The SMARTFOLD Ultra 800 – PC is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other boxes.

SMARTFOLD Ultra 800 – SL is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other box types.

Produced box type

straight-line box A: 150 - 800 mm
B: 100 - 1100 mm
E: 70 - 390 mm
crash-lock bottom box A: 150 - 800 mm
B: 110 - 1100 mm
E: 70 - 390 mm
double-wall box A: 200 - 800 mm
B: 100 - 1100 mm
D: 30 - 150 mm
E: 80 - 680 mm
4-corner box A: 140 - 800 mm
B: 140 - 1100 mm
H: 25 - 150 mm
4-corner box with lid A: 250 - 800 mm
B: 140 - 1000 mm
H: 25 - 150 mm
6-corner box A: 250 - 800 mm
B: 140 - 1000 mm
H: 25 - 150 mm

Processed materials

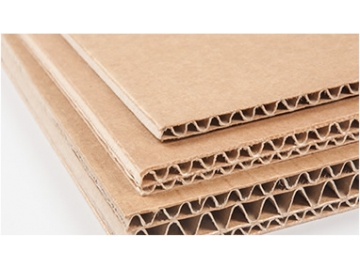

Carton board
Corrugated board

Parameters
Processed materials

Max. Carton board	800 g/m²
Corrugated flute type	N, E & F

Capacity

Max. speed	500 m/min
Inching speed	30 m/min
Max. Thickness of folded box	20 mm
Max. Blank width	800 mm
Total length of pressure conveyor section	5.5 m
Effective pressure conveying length	3.1 m
Lower belt width	25mm
Outer belt width	30mm
Feeding conveyor belt number	6 pieces
Feeding belt width	30mm

Size and Weight

Item	PC	SL
Length	17.81 m	17.81 m
Width	1.6 m	1.6 m
Height	1.9 m	1.9 m
Weight	11.3 Ton	11.5 Ton

Installation

Item	PC	SL
Electrical connected load	66 kW	66 kW
Compressed air	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h
Air tank capacity	60 L	60 L

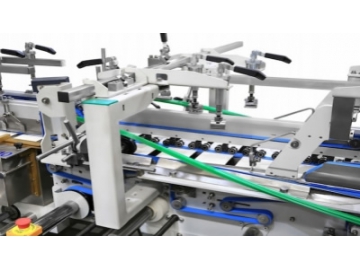

folding and gluing system components

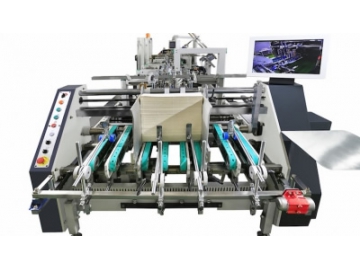

Feeder section

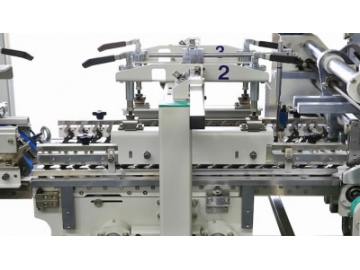

Register table

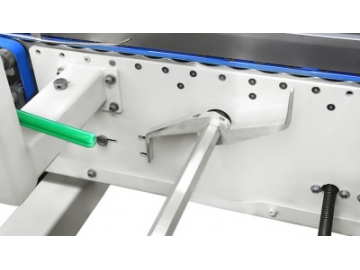

Pre-folding section

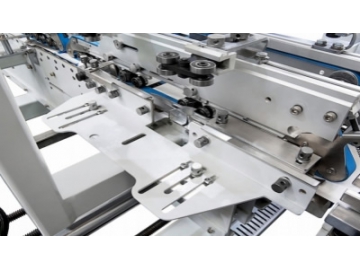

Multi-function section

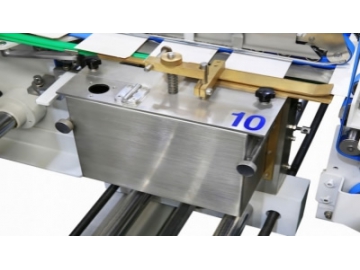

Gluing unit

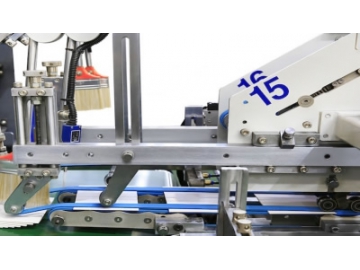

Folding and closing section
Trombone section

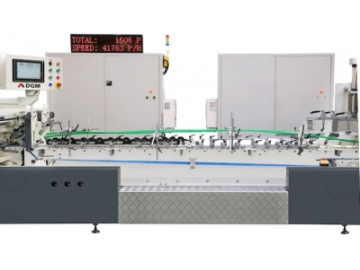

Press section
Back-folding device
