Folding and Gluing Line 2000 type Carton Folder Gluer Machine
High Speed Carton Equipment Manufacturer
Description
The folding and gluing line’s 2000 type carton folder gluer features a maximum blank width of 950mm. The standard version includes two lower gluing units, one on the left and the other on the right, plus two upper electronic gluing system, one for hotmelt with one-gun and the other for cold flue with three guns.
This folding and gluing system is equipped with a feeder driven by an independent motor to process either one sheet or two sheets. Then it will accurately splice the two pieces thanks to the lateral squaring device. This makes it extremely suitable for the packaging of three-layer or five-layer large corrugated boards.
ApplicationThe G-FOLD 2000–AC without pre-folding section is for straight-line boxes, crash-lock bottom boxes and other box types.
Produced box type- Straight-line box A: 550 - 2000 mm
B: 100 - 1300 mm - crash-lock bottom box A: 650 - 2000 mm
B: max. 1300 mm
C: min. 120 mm
D: 40 - 200 mm - 2-pieces box A: min. 550 mm
B: 100 - 1300 mm

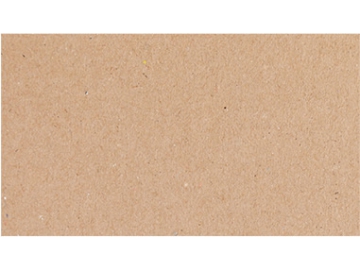

- Carton board

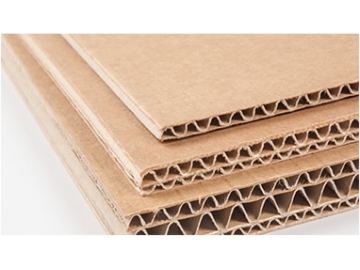

- Corrugated board
Processed materials
| Max. Carton board | 1200 g/m² |
| Corrugated flute type | E, C, B, AB, 3-layer or 5-layer |
| Max. speed | 200 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 550-950mm per sheet |
| Feeding conveyor belt number | 4 pieces |
| Feeding conveying r belt width | 60mm |
| Total press conveyor length | 6.5 m |
| Effective press conveying length | 4.7 m |
| Length | 20.5 m |
| Width | 2.8 m |
| Height | 1.95 m |
| Weight | 11.5 Ton |
| Electrical connected load | 22.5 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 60 L |

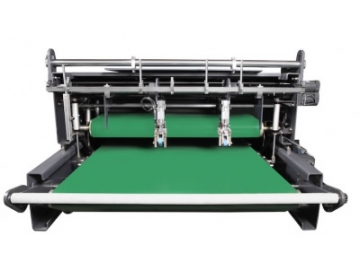

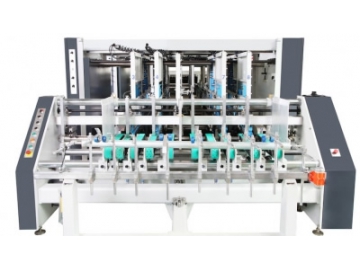

- Feeder section

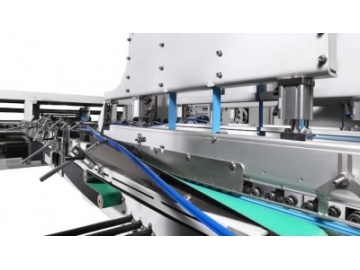

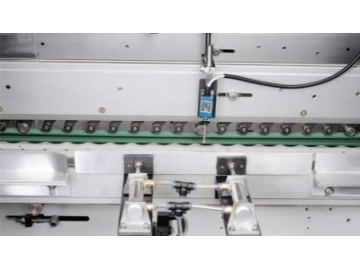

- Splice section
- Lock bottom section

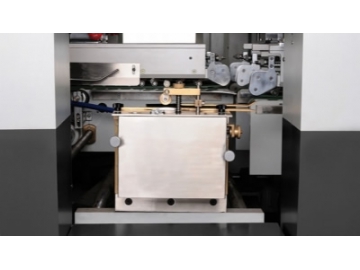

- Lower gluing unit

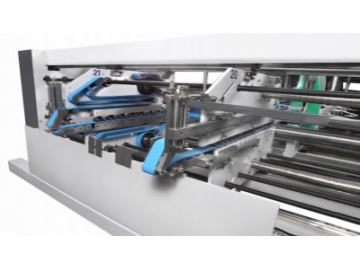

- Folding and closing section

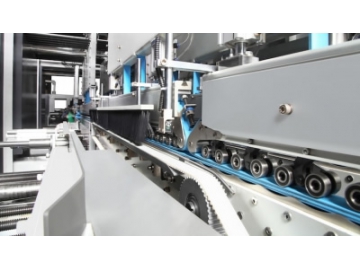

- Trombone section
- Press section
