Magnetic Triangle Stand (90 Degree V Angle) Manufacturer

Magnetic Triangle Stand (90 Degree V Angle)

Request a Quote

Website: http://magnets-en.com/4-9-magnetic-triangle-stand-90-degree-v-angle.html

Magnetic Tools

Vee blocks for holding workpieces during grinding, drilling and measuring processes

Keeping workpieces stable during grinding, drilling, and inspection requires a secure and adjustable support system. Magnetic triangle stands provide a reliable holding solution, with a V-shaped surface, top plane, and base that become magnetized when the switch is activated. These stands are widely used in machining and quality control processes, offering a convenient way to position and secure workpieces with precision.

Specifications

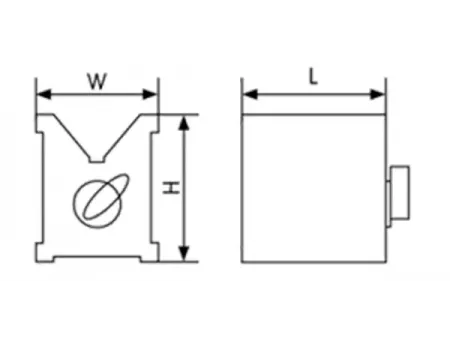

Model	V angle	Magnetic force (N/kg)	Dimensions (mm)			Weight (kg)
Model	V angle	Magnetic force (N/kg)	L	W	H	Weight (kg)
SWF2001	90°	245/35	71	60	73	1.5
SWF2002	90°	392/40	101.6	67	96	3.6

Features

Adjustable holding strength, allowing for secure clamping based on different workpiece sizes and machining needs.
