This electric cable is suitable for control, monitor, and protection circuits with AC rated voltage lower than 450/750V. The cable jacket is resistant to sunlight, oil, and moisture penetration, making these cables appropriate for wet and dry locations as well as outdoors. The flexible multi-conductor control cable provides excellent strength and performance for maximum mechanical load requirements. A solid conductor cable is also available. TDii provides different electric cables for a fixed or mobile installation.
Control cable model
| Model | Name |
| KVV | Copper core PVC-insulated and PVC-sheathed control cable |
| KVV22 | Copper core PVC-insulated, PVC-sheathed and steel-tape armored control cable |
| KVVP | Copper core PVC-insulated, PVC-sheathed and braid screened control cable |
| KVVP2 | Copper core PVC-insulated, PVC-sheathed and copper tape screened control cable |
| KVVR | Copper core PVC-insulated and PVC-sheathed flexible control cable |
| KVVRP | Copper core PVC-insulated, PVC-sheathed and braid screened flexible control cable |
| KVVP2-22 | Copper core PVC-insulated, PVC-sheathed, copper tape screened and steel-tape armored control cable |
| KVVRP2 | Copper core PVC-insulated, PVC-sheathed, and copper tape screened flexible control cable |
| KVVR22 | Copper core PVC-insulated, PVC-sheathed and steel-tape armored flexible control cable |
| KVVRP2-22 | Copper core PVC-insulated, PVC-sheathed, copper tape screened and steel-tape armored flexible control cable |
| KYJV | Copper core XLPE-insulated and PVC-sheathed control cable |
| KYJV22 | Copper core XLPE-insulated, PVC-sheathed and steel-tape armored control cable |
Characteristics
- Rated voltage: U0/U 450/750V
- Maximum long-term working temperature:
PVC insulated control cable: 70℃;
XLPE insulated control cable: 90℃. - Minimum environmental temperature for installation: 0℃
Minimum Bending Radius
| Insulation | No Armored | Armored or Copper Tape Screen | Shielded |
| PVC-insulated Cable | 6D | 12D | 6D |
| XLPE-insulated Cable | 8D | 12D | - |
| Note: “D” Stand for the outer diameter of control cable | |||
Cable specifications
PVC-insulated Cables | Model | Conductor Nominal Cross Sectional Area/mm2 | |||||||
| 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Number of Cores | ||||||||
| KVV，KVVP | - | 2~61 | 2~14 | 2~10 | ||||
| KVVP2, KVVP3 | - | 4~61 | 4~14 | 4~10 | ||||
| KVV22 | - | 7~61 | 4~61 | 4~14 | 4~10 | |||
| KVVP2-22 | - | 7~61 | 4~61 | 4~14 | 4~10 | |||
| KVVR | 2~61 | - | - | |||||
| KVVRP | 2~61 | 2~48 | - | - | ||||
| Note: Recommended number of cores: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52 and 61 | ||||||||
| Model | Conductor Nominal Cross Sectional Area/mm2 | ||||||
| 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
| Cores | |||||||
| KYJV, KYJVP KYJY, KYJYP | 2~61 | 2~14 | 2~10 | ||||
| KYJYP2, KVVP3 KYJYP2, KYJYP3 | 4~61 | 4~14 | 4~10 | ||||
| KYJV22, KYJY23 | 7~61 | 4~61 | 4~14 | 4~10 | |||
| KYJVP2-22 KYJYP2-23 | 7~61 | 4~61 | 4~14 | 4~10 | |||
| Note: Unlisted cable models can be provided according to customer’s requirements | |||||||
Configuration

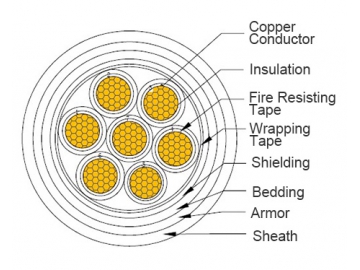

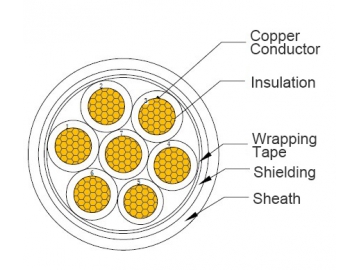

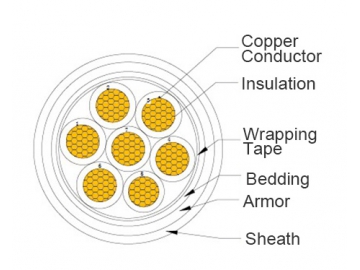

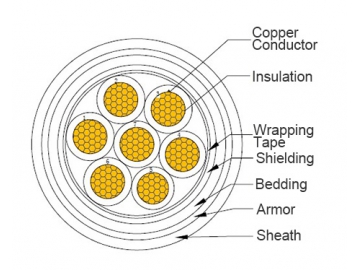

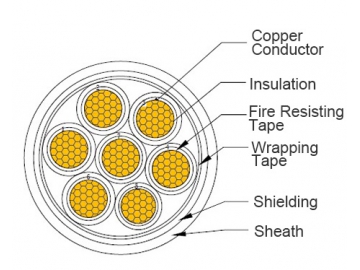

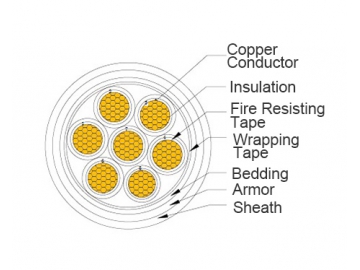

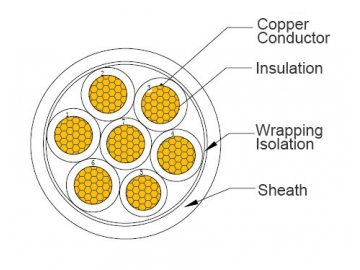

Applicable to the following listed models - KVV
- Z(A, B, C, D, R)-KVV
- KYJV
- KVVR
- Z(A, B, C, D, R)-KVVR
- WDZ(A, B, C, D, R)-KYJY
- Z(A, B, C, D, R)-KYJV

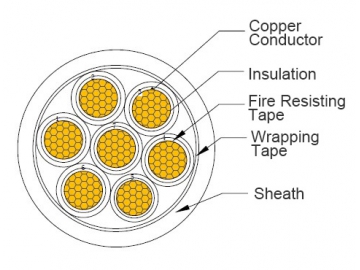

Applicable to the following listed models
- KVVP
- Z(A, B, C, D, R)-KVVP3
- KYJVP2
- KVVP2
- Z(A, B, C, D, R)-KVVRP
- Z(A, B, C, D, R)-KYJVP2
- KVVP3
- KYJVP
- KYJVP3
- KVVRP
- WDZ(A, B, C, D, R)-KYJYP
- Z(A, B, C, D, R)-KYJVP3
- Z(A, B, C, D, R)-KVVP
- Z(A, B, C, D, R)-KYJVP
- WDZ(A, B, C, D, R)-KYJYP2
- Z(A, B, C, D, R)-KVVP2
- Z(A, B, C, D, R)-KYJVP2WD
- Z(A, B, C, D, R)-KYJYP3
Applicable to the following listed models
- Z(AN, BN, CN, DN, RN)-KVV
- WDZ(AN, BN, CN, DN, RN)-KYJY
- Z(AN, BN, CN, DN, RN)-KVVR
- Z(AN, BN, CN, DN, RN)-KYJV
Applicable to the following listed models
- Z(AN, BN, CN, DN, RN)-KVVP
- Z(AN, BN, CN, DN, RN)-KYJVP
- Z(AN, BN, CN, DN, RN)-KVVP2
- Z(AN, BN, CN, DN, RN)-KYJVP2
- Z(AN, BN, CN, DN, RN)-KVVP3
- Z(AN, BN, CN, DN, RN)-KYJVP3
- Z(AN, BN, CN, DN, RN)-KVVRP
- WDZ(AN, BN, CN, DN, RN)- KYJYP2
- WDZ(AN, BN, CN, DN, RN)-KYJYP
- WDZ(AN, BN, CN, DN, RN)- KYJYP3
Applicable to the following listed models
- KVVP2-22
- Z(A, B, C, D, R)-KYJVP2-22
- Z(A, B, C, D, R)-KVVP2-22
- WDZ(A, B, C, D, R)- KYJYP2-23
Applicable to the following listed models
- KVV22
- Z(A, B, C, D, R)- KYJV22
- Z(A, B, C, D, R)-KVV22
- WDZ(A, B, C, D, R)- KYJY23
Applicable to the following listed models
- Z(AN, BN, CN, DN, RN)-KVV22
- Z(AN, BN, CN, DN, RN)-KYJV22
- WDZ(AN, BN, CN, DN, RN)- KYJY23
Applicable to the following listed models
- Z(AN, BN, CN, DN, RN)-KVV22
- Z(AN, BN, CN, DN, RN)-KYJV22
- WDZ(AN, BN, CN, DN, RN)- KYJY23
Technical parameters
Conductor resistance, nominal thickness and insulated core | Nominal Cross-Sectional Area/mm2 | Conductor Resistance/Ω/km | Nominal Thickness of Insulating Layer /mm | ||
| Solid conductor cable | Flexible multi conductor cable | PVC | XLPE | |
| 0.5 | 36 | 39 | 0.6 | - |
| 0.75 | 24.5 | 26 | 0.6 | 0.6 |
| 1 | 18.1 | 19.5 | 0.6 | 0.6 |
| 1.5 | 12.1 | 13.3 | 0.7 | 0.6 |
| 2.5 | 7.41 | 7.98 | 0.8 | 0.7 |
| 4 | 4.61 | 4.95 | 0.8 | 0.7 |
| 6 | 3.08 | 3.3 | 0.8 | 0.7 |
| 10 | 1.83 | 1.91 | 1 | 0.7 |
