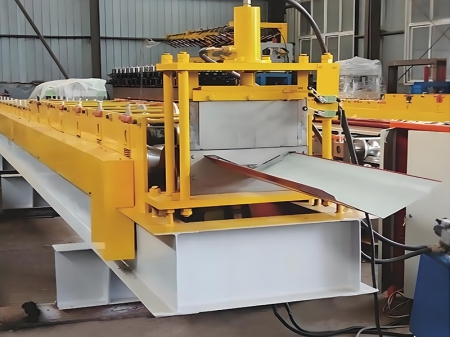

Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine is able to produce ridge panels of unlimited length. This helps to eliminate the problems of rain leakages and breakage on joints. With a beautiful appearance and superior waterproof quality, they are widely used on the roofs of different types of buildings.
The machine is mainly applicable in the large and small roof projects, the rain proofing and waterproofing project , as well as the beautiful roof formed by the composite sheet and flat sheet.
Specifications| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) AL (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 0.3-0.6mm (customizable) |
| Feeding Width | 200-400mm (customizable) |
| Effective Width | 100-350mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Size | Approx. 8×1.6×1.4m |
| Machine Weight | 5-6t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |
| Main Shaft | Diameter: Ø70mm, Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 9-15 stations |
| Motor Power | 3.0-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0-11kW) |
| Cutting Blade Material | Cr12Mov (heat treatment, HRC 58-60) |

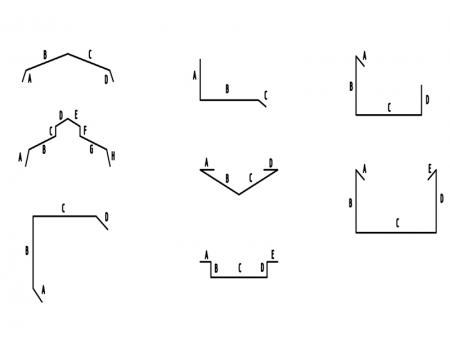

(Select from our standard profiles below, or send us your customized drawing)
Process
Decoiling → Feeding & Guiding→ Roll Forming → Automatic Cutting-To-Length → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 3T Manual Uncoiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Power Unit | 1 Set |
| 5 | Control System (including Cabinet) | 1 Set |
| 6 | Run-Out Table | 1 Set |
Bohai has more than 20 years of experience in the manufacture and supply of roll forming machines and Ridge Cap Roll Forming Machines. Our company is located in Yingkou city, China. We major in manufacturing roll forming machines, Arch Sheet Roll Forming Machines, SM-40 Spiral Steel Silo Forming Machine s, and Colored Steel Coils, all of which are exported to Mexico, Ukraine, Romania, UAE, Iraq, Angola and more countries. Please feel free to contact us!
