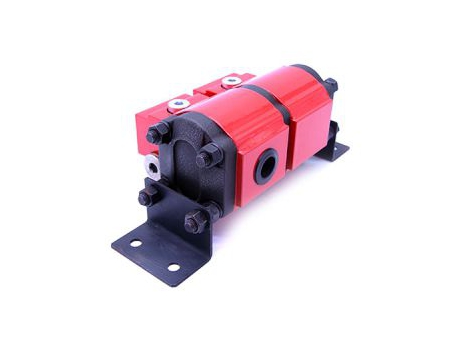

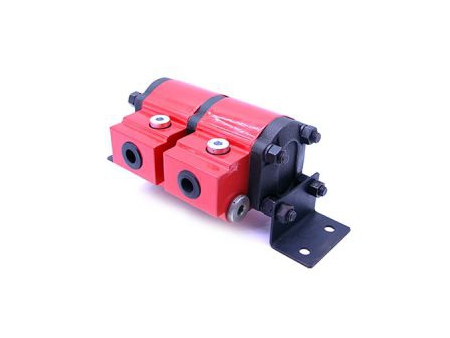

2FDF | 6-31ml/r
Gear Flow Divider
The 2FDF series is a key part of our lineup of gear flow dividers, which includes the 1FDF, 1AFDF, 2FDF, and 3FDF series, covering a displacement range from 1.6 to 70 ml/r. These dividers are capable of connecting two or more gear motors via a coupler, ensuring actuators operate synchronously with a high degree of precision. The series is notable for its integration capabilities with overflow valves, one-way valves, and speed control valves, enhancing system protection and offering oil supplementation. GRH flow dividers achieve synchronization accuracy within ±1.5% to ±2%.
Key aspects of the 2FDF series include
- A versatile displacement range of 6 to 31 ml/r, accommodating a variety of system demands.
- Ensures the synchronized functioning of actuators, crucial for systems requiring precise timing and flow distribution.
- High synchronization precision, emphasizing the series' effectiveness in maintaining operational consistency and accuracy.
| Displacement | SAE Ports | Minimum Flow/Sec | Maximum Flow/Sec | Cont. Diff. Pressure Between Inlet/Outlet | Maximum Outlet Pressure Any Section | |||||||
| In3 | Cm³ | Inlet | Outlet | Drain | Gpm | Lpm | Gpm | Lpm | Psi | Bar | Psi | Bar |
| 0.366 | 6 | G3/8 | G1/2 | G3/8 | 0.8-4.2 | 3.0-16 | 4.8 | 18 | 3142 | 220 | 3571 | 250 |
| 0.488 | 8 | G3/8 | G1/2 | G3/8 | 1.1-5.0 | 4.0-19 | 5.8 | 22 | 3142 | 220 | 3571 | 250 |
| 0.671 | 11 | G3/8 | G1/2 | G3/8 | 1.5-6.6 | 5.5-25 | 7.1 | 27 | 3142 | 220 | 3571 | 250 |
| 0.854 | 14 | G3/8 | G1/2 | G3/8 | 1.8-8.4 | 7.0-32 | 9 | 34 | 2857 | 200 | 3142 | 220 |
| 1.037 | 17 | G3/8 | G1/2 | G3/8 | 2.2-9.0 | 8.5-34 | 9.8 | 37 | 2857 | 200 | 3142 | 220 |
| 1.525 | 25 | G3/8 | G1/2 | G3/8 | 3.1-12.7 | 12-48 | 14 | 53 | 2857 | 200 | 3142 | 220 |
| 1.891 | 31 | G3/8 | G1/2 | G3/8 | 3.7-15.9 | 14-60 | 18.5 | 70 | 2286 | 160 | 2571 | 180 |
The 2FDF gear flow dividers are utilized across various sectors, including storage equipment, agricultural machinery, construction machinery, and industrial devices. Their widespread application is attributed to their ability to integrate with relief valves, facilitating easy adjustment of system pressure. This versatility ensures they are an essential component in enhancing the functionality and efficiency of machinery such as boom truck cranes, aerial work platforms, tractors, harvesters, log splitters, and forklifts, where precise flow control and synchronization are critical.
