Environmental catalyst support media use high-purity aluminum oxide as raw material and add specialty additives, most often functioning as a protective agent for catalysts. In reaction towers, a certain amount of impurities will be filtered by material filter. However, particles and iron ions smaller than 25μm will still remain. By installing the inert catalyst bed support balls on the top of rector, these impurities will be totally adsorbed and left in the holes, allowing catalysts will not go coking.

Outstanding Features of Environmental Catalyst Support Media

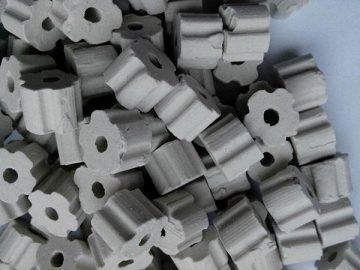

1. The hollow structure and surface grooves of inert ceramic support media assures a certain crushing strength, meanwhile, increase the specific surface area and porosity.
2. With a porosity of 40-50%, the environmental catalyst support media is capable to filter particles, glues, asphaltene and heavy metals in oil products.

Parameters of Environmental Catalyst Support Media
Model Items HT-1A HT-2A HT-3A HT-4A HT-5A HT-6A HT-7A HT-8A
Size, mm φ 6 ×4 φ 8 ×6 φ 10 ×7 φ 13 ×9 φ 16 ×12 φ 20 ×15 φ 25 ×18 φ 35 ×20
Pore diameter, mm 1.2 1.5 2.0 2.5 3.0 4.0 5.0 6.0
Recess diameter, mm 1.5 ±0.5 2.0 ±0.5 2.5 ±0.5 2.5 ±0.5 3.0 ±0.5 4.0 ±0.5 5.0 ±0.5 4.0 ±0.5
Number of groove 3 3 3 5 5 5 5 5
Physical Properties & Chemical Properties
Model Items HT-1 HT-2 HT-3
ALO3 % ALO3 SiO2 % Fe2O3 % 20-80
> 92
< 1
Crushing strength, N/particle 100-20000, depending on the media size
Air permeability, m3/m3.h 0.2-0.8 1-6 7-30
Porosity, % 30-40 25-35 20-30
Pore size, υ m 0.5-35 40-100 110-1000
Acid resistance, % ≥ 98 ≥ 98 ≥ 97
Alkali resistance, % ≥ 85 ≥ 85 ≥ 82
Resistance to temperature shock, △ T ℃ -20-800 -20-800 -20--800
Bulk density, T/m3 1.1--1.3
Model Items HT- Ⅰ HT- Ⅱ HT- Ⅲ
Bulk density, T/m3 1.1-1.3 1.1-1.2 1.1-1.25
Pore volume, ml/g 0.5-0.6
Resistance to temperature shock, △ T ℃ -20--500 -20--600 -20--600
Using temperature, ℃ -40-1350
Crushing strength, N/particle 2500-3500 depending on media size
