EMD02 Square 4 Flute Carbide End Mills, Titanium & Stainless Purpose
Request a Quote
- Designed for high precision milling, with good surface finishes on the workpieces
- Offers excellent performance when cutting low hardness materials (under HRc40) such as stainless steel, alloy steel
- Superior coating offers outstanding slotting and finishing

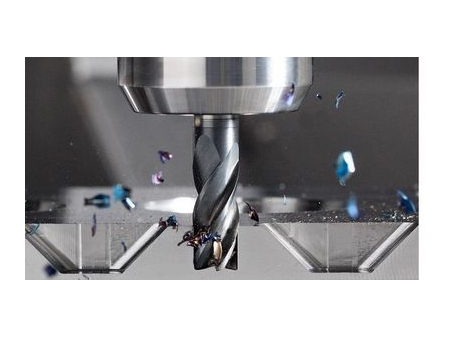

Application
Product Specifications
| Coating | AITiN /TiAlN | Work Material | Titanium & Stainless Steels, etc. |
| Helix Angle | 35° | Shank | Cylindrical H6 |
| Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide End Mill, Square, 4 Flutes - Slotting（UNT-EMD02) - High Precision Type
Unit: mm | UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMD02010 | 1.0 | 4 | 3 | 50 | 4 |
| EMD02015 | 1.5 | 4 | 4 | 50 | 4 |
| EMD02020 | 2.0 | 4 | 6 | 50 | 4 |
| EMD02025 | 2.5 | 4 | 6 | 50 | 4 |
| EMD02030 | 3.0 | 4 | 8 | 50 | 4 |
| EMD02040 | 4.0 | 4 | 11 | 50 | 4 |
| EMD020306 | 3.0 | 6 | 8 | 50 | 4 |
| EMD020406 | 4.0 | 6 | 11 | 50 | 4 |
| EMD02050 | 5.0 | 6 | 13 | 50 | 4 |
| EMD02060 | 6.0 | 6 | 16 | 50 | 4 |
| EMD02070 | 7.0 | 8 | 20 | 60 | 4 |
| EMD02080 | 8.0 | 8 | 20 | 60 | 4 |
| EMD02090 | 9.0 | 10 | 25 | 75 | 4 |
| EMD02100 | 10.0 | 10 | 25 | 75 | 4 |
| EMD02120 | 12.0 | 12 | 30 | 75 | 4 |
| EMD02140 | 14.0 | 14 | 30 | 90 | 4 |
| EMD02160 | 16.0 | 16 | 40 | 100 | 4 |
| EMD02200 | 20.0 | 20 | 40 | 100 | 4 |
• Non-standard size or product parameters not listed above, can be customized according to customer needs.
