ERTi-4 (Titanium Grade 4) Titanium Welding Wire
Request a Quote
Welding Consumables
Commercially pure titanium filler metal for MIG and TIG welding in applications requiring high strength and high temperature resistance
- Standard: AWS A5.16
Chemical Composition (%)
| Fe | O | C | N | H |
| ≤0.25 | 0.18-0.32 | ≤0.03 | ≤0.025 | ≤0.008 |
Features
- ERTi-4 titanium welding wire maintains high strength and stable performance in high-temperature environments.
- This welding wire performs well in corrosive environments, making it suitable for a wide range of chemical applications.
- ERTi-4 retains its high performance even at low temperatures, making it ideal for applications that require reliable functionality in cold conditions.
- It has a high degree of chemical activity and low thermal conductivity, making it suitable for welding tasks that require precise control.
Applications
- Petrochemical industry: ERTi-4 is widely used in the welding of petrochemical equipment and pipelines, capable of withstanding high temperatures and corrosive media.
- Military and defence: Due to its high strength and heat resistance, ERTi-4 plays a vital role in military and defence applications, used to manufacture critical components.
- Aerospace and shipbuilding: Used in aerospace and shipbuilding, ERTi-4 titanium welding wire is ideal for manufacturing parts that need to perform under extreme conditions.

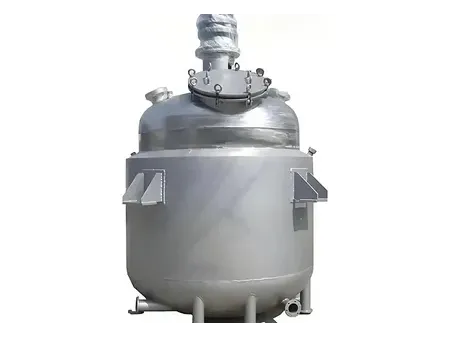

- Electronics, boilers, reactors, pumps, valves, pressure vessels: These industries require corrosion-resistant and high-strength materials, making ERTi-4 the ideal choice for welding.
- Turbine blades and pipe fittings: ERTi-4 provides excellent performance and durability in the manufacturing of turbine blades and pipe fittings.
Packaging

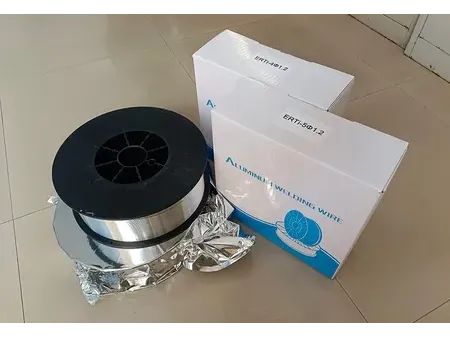

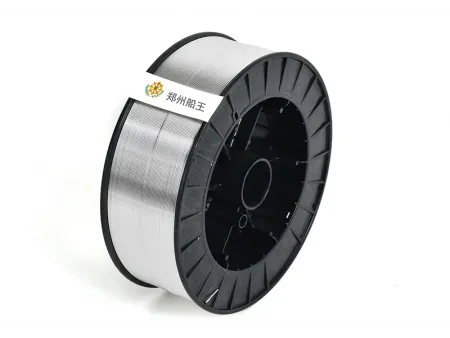

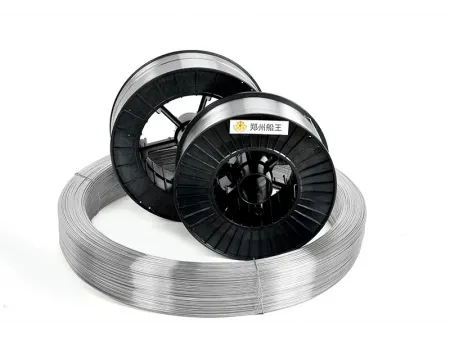

- MIG wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
- Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

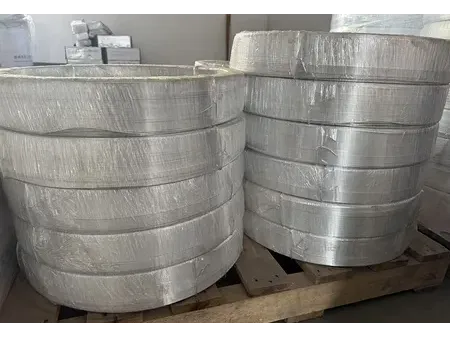

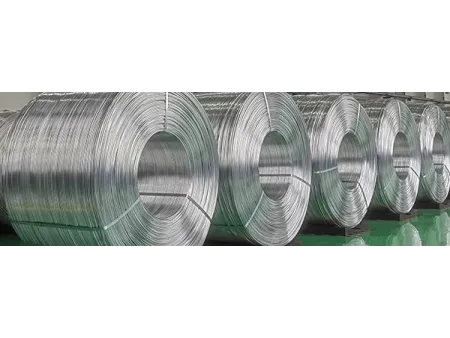

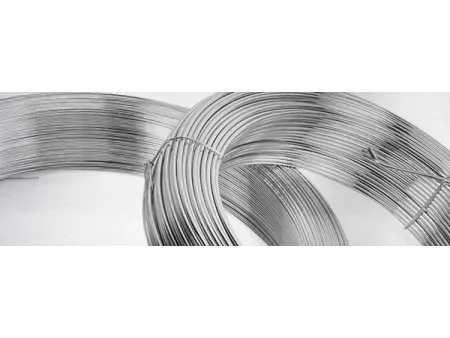

- Welding wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
- Coil inner diameter: D450mm, D300mm
- Package: 10-17kg/coil

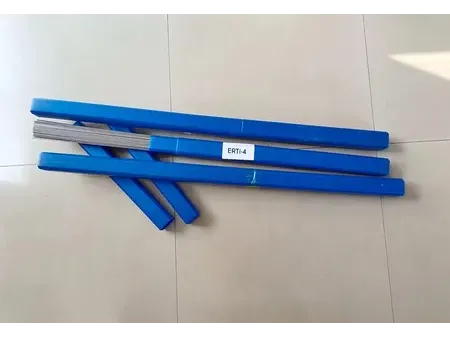

- TIG wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Package: 1000mm length (5kg/plastic box)
