ERTi-2 (Titanium Grade 2) Titanium Welding Wire

Request a Quote

Website: http://weldingwire-en.com/2-2-titanium-welding-wire-erti-2.html

Welding Consumables

Commercially pure titanium filler metal for MIG and TIG welding in applications where good strength, formability and weldability are required

• Standard: AWS A5.16

Chemical Composition (%)

C	O	N	H	Fe
≤0.03	0.08-0.16	≤0.015	≤0.008	≤0.12

Features

• Offers superior mechanical properties with low impurity content
• Known for its outstanding weldability and excellent welding process performance, making it ideal for high-quality, reliable welds

Applications

• Electronics and electrical equipment
• Boilers and reactors
• Pumps and valves

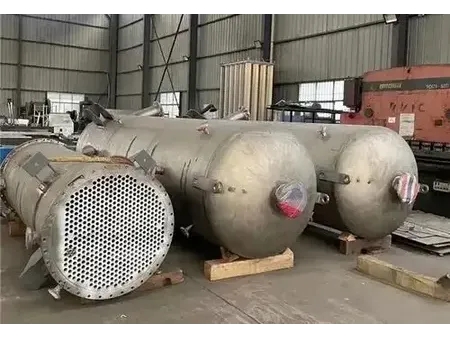

• Pressure vessels
• Turbine blades
• Pipe fittings and connectors
• Metal 3D printing

Packaging

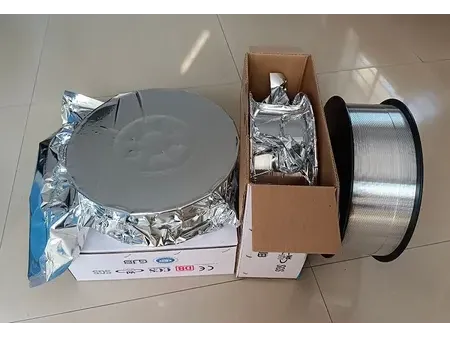

• Spooled welding wire

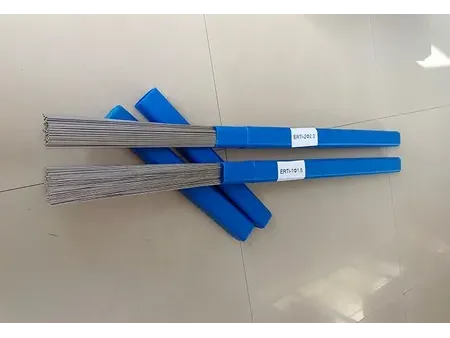

• Straight welding wire

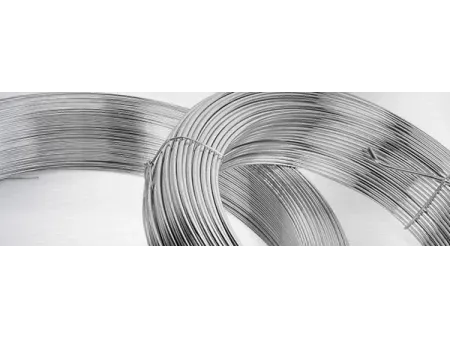

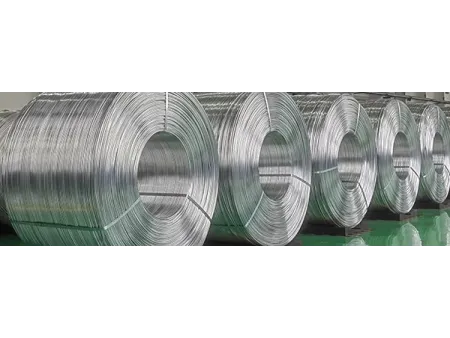

• Coiled welding wire

• MIG wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
• Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

• TIG wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
• Package: 1000mm length (5kg/plastic box)

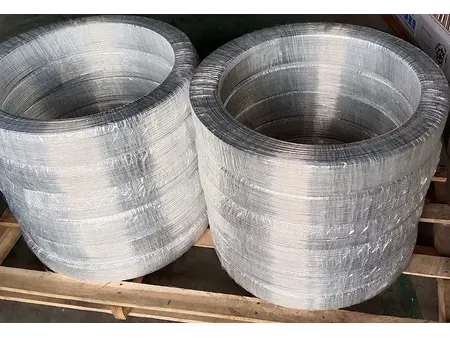

• TIG wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
• Coil inner diameter: D450mm, D300mm
• Package: 10kg/coil
