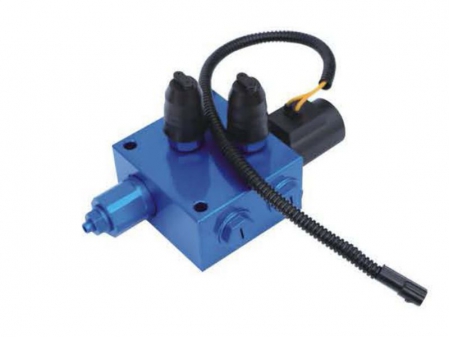

PDF11-00 Brake Valve

PDF11-00  Brake Valve
PDF11-00  Brake Valve
PDF11-00  Brake Valve
PDF11-00  Brake Valve
Request a Quote

The brake valve is designed with a built-in pressure-reducing valve. The equipped 3-way, 2 position solenoid valve is used for the flow control of hydraulic oil and fluid to realize electrically-controlled braking.

Parameters
Oil input pressure 20MPa
Solenoid valve voltage DC24V
Oil return pressure ≤0.5MPa
Viscosity range 10-380 mm²/s
Oil temperature range -20℃--100℃
Oil cleanliness No less than Level GB/T 14039-2002 19/16 or Level NAS 1638 10
Mass 3.8Kg
Contour Connection Size

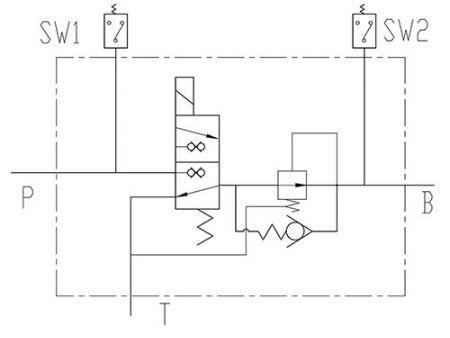

Hydraulic system schematic
