Multi Bag Filter Housing
Request a Quote
Multi bag filter housings are mainly used fot filtering impurities in the water or mechanical liquid. We provide two types of filter bags, #1 and #2 bags supported by a stainless steel basket. The multi bag filter housings feature large filtration surface and high filtration efficiency. The maximum flow capacity reaches 90m³/h to 1080m³/h.
Technical Parameters
| Model | A (mm) | B (mm) | C (mm) | D (mm) | |
| ZTDS-4P2S | 1950 | 1000 | 550 | 250 | |
| ZTDS-6P2S | 2140 | 1000 | 700 | 250 | |
| ZTDS-8P2S | 2560 | 1000 | 800 | 250 | |
| ZTDS-10P2S | 2600 | 1000 | 1000 | 250 | |
| ZTDS-12P2S | 2650 | 1000 | 1100 | 250 |
| Model | A (mm) | B (mm) | C (mm) | D (mm) | |
| ZTBM-4P2S | 1700 | 750 | 600 | 200 | |
| ZTBM-6P2S | 1900 | 750 | 750 | 200 | |
| ZTBM-8P2S | 2450 | 750 | 1150 | 200 |

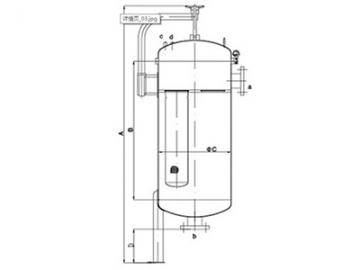

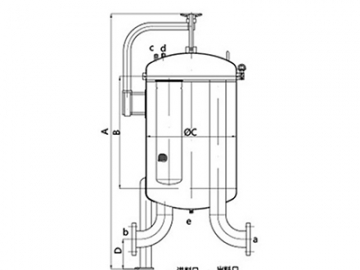

a. inlet; b. outlet; c. pressure gauge; d. vent; e. drain
