Stainless Steel Multi-Bag Filter Housing
Request a Quote
Enhance your filtration processes with our multi-bag filter housing. Our stainless steel housing accommodates 1 to 24 filter bags, making it ideal for coarse and prefiltration stages. Designed to pressure vessel standards and manufactured with stringent quality criteria, our filter housing ensures safety, reliability, and ideal sealing performance. The bearing-arm structure simplifies operation, allowing easy maintenance.
Materials of Construction
| Filter Housing & Filter System | 304/316L |
| Eyebolt | 304/316L |
| Legs | 304/316L |
| O-ring | Silicone/Fluoro Rubber/EPDM/PTFE |
Connection Methods
| Connection | Eyebolt |
| Inlet/Outlet | Flange |
| Pressure Gauge | M14*1.5 |
| Inlet Method | Top inlet, side inlet, multi-bag |
Surface Treatment
| Polishing Type | Mirror Polishing/ Electrolytic Polishing/ Sandblasting |
| Polishing Precision | Inner Wall 0.6μm/ Outer Wall 0.8μm |
| Bag 0.6μm |
Specifications
| Design Pressure | 0.6Mpa/1.0Mpa |
| Max. Operating Temperature | 130℃ |
Bag Dimensions
| Size 1 Bag | 180*420mm |
| Size 2 Bag | 180*810mm |
| Choose single-core or multi-core based on flow rates | |
Top-Inlet Bag Filter Housing Dimensions
| Specifications | Size 1 Bag | Size 2 Bag |
| A Total Height (Excluding Pressure Gauge) (mm) | 788 | 1108 |
| B Inlet Center Distance (mm) | 280 | 280 |
| C Diameter (mm) | 219 | 219 |
| D Inlet Clearance Height (mm) | 743 | 1063 |
| E Outlet Clearance Height (mm) | 150 | 150 |
- Internally and externally mirror-polished, achieving a contact roughness of 0.6μm, meeting stringent hygiene standards.
- The end cap ensures optimal sealing, enhancing filtration efficiency.

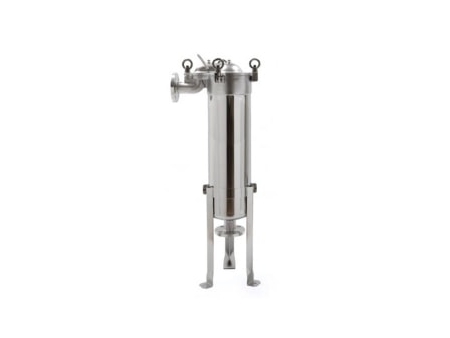

Side-Inlet Bag Filter Housing Dimensions
| Specifications | Size 1 Bag | Size 2 Bag |
| A Total Height (Excluding Pressure Gauge) (mm) | 897 | 1237 |
| B Inlet Center Distance (mm) | 180 | 180 |
| C Diameter (mm) | 219 | 219 |
| D Inlet Clearance Height (mm) | 795 | 1135 |
| E Outlet Clearance Height (mm) | 150 | 150 |
- Internally and externally mirror-polished, achieving a contact roughness of 0.6μm, meeting stringent hygiene standards.
- Our "side-in, bottom-out" and "side-in, side-out" configurations efficiently save space, presenting a cost-effective and rational design.

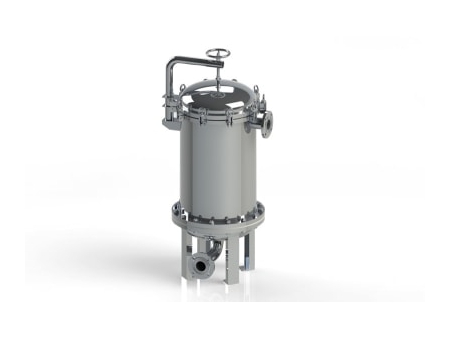

Multi-Bag Filter Housing Dimensions
| Specifications | 3-Bag | 4-Bag | 6-Bag | 8-Bag | 10-Bag | ||
| Size 1 Bag | Size 2 Bag | Size 1 Bag | Size 2 Bag | Size 2 Bag | Size 2 Bag | Size 2 Bag | |
| A Total Height (Excluding Pressure Gauge) (mm) | 1670 | 1990 | 1730 | 2050 | 2170 | 2220 | 2320 |
| B Inlet Center Distance (mm) | 300 | 300 | 350 | 350 | 430 | 480 | 580 |
| C Diameter (mm) | 450 | 450 | 550 | 550 | 700 | 800 | 1000 |
| D Inlet Clearance Height (mm) | 1100 | 1420 | 1130 | 1450 | 1450 | 1465 | 1515 |
| E Outlet Clearance Height (mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
- Bearing-arm and eyebolt design ensures smooth operation and easy maintenance.
- Versatile configurations, ranging from 3 to 24 bag filter products, offer compact designs, minimizing footprint while catering to diverse flow rates.
- Spring-assisted weight balance mechanism in the end cap simplifies opening, especially suited for larger bag filter installations.
Applications
- Electrocoating paint filtration, degreasing process filtration, metal pigment filtration.
- Circulation filtration of cooling fluids, ultrafine grinding rust-proof oil machine filter cartridges.
- Filtration of process waters, syrup, and other raw materials.
- Pure water filtration, chemical slurry filtration.
- Gel filtration.
