Electrostatic Powder Coating Spray Booth
Request a Quote

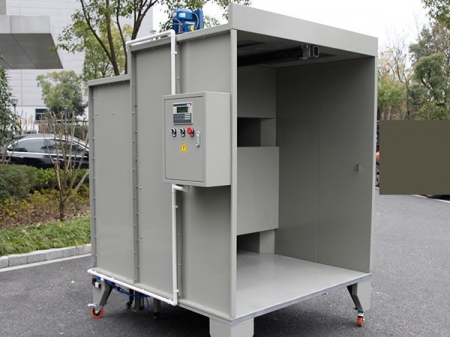

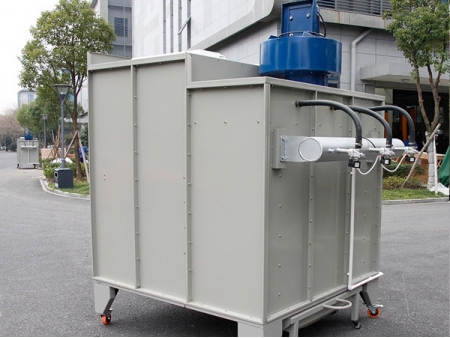

- COLO-S-1517 powder spray booth is designed for easy and efficient manual coating applications.
- Made of durable powder coated steel, it features easy to clean and simple color change.
- Compact structure requires less working area, providing more flexibility.
- High performance filter recovery system achieves efficient use of powder and increase recovery rate.
- Provides a superior clean environment for small or medium production runs.
- Ideal for powder coating wheels, rims, automotive parts, metal accessories.
| Model | COLO-S-1517 |
| Operating dimensions | 1500 width x 1000 depth x 1700 height mm |
| Overall dimensions | 1640 width x 2070 depth x 2180 height mm |
| Weight | 480 kg |
| Power supply | Electric |
| Nominal power | 2.2 kW |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filter quantity | 3pcs (D325*H900 mm) |
| Hang type filter | Easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 4000 m3/h |
Cartridge Filters
- Quick-release type cartridge filters can be manually removed and replaced without special tools, easy for color change.
- Combines 3 pcs high precision cartridge filters, made of polyester with exact porosity allows for 100% separation of powders from airflow.

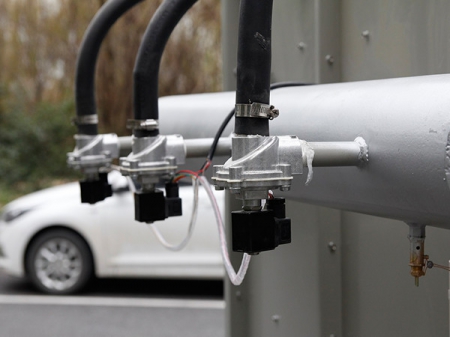

Filter Cleaning System
- Filter cleaning is carried out with programmable pulse-jets thanks to a PLC.
- The self-cleaning system enables accumulated powders on the filter to be intermittently discharged into a recovery hopper beneath the filter stage.

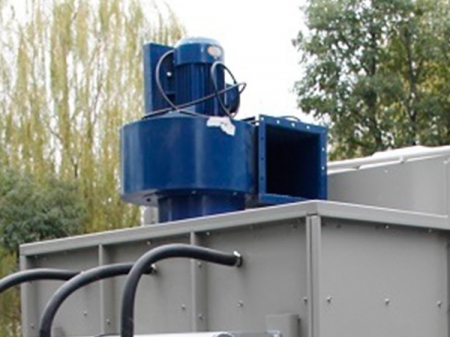

Fan
- The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for completely capture.
- Our aluminium fan is safe, durable and low noise.

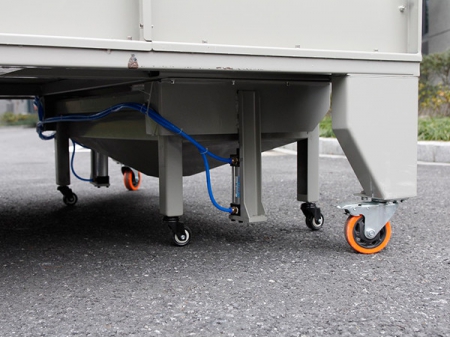

Removable Powder Collector
- After filter cleaning, the discharged powders will be collected into a hopper beneath the unit, which can be taken away for fully emptying.
- The removable powder collector helps operators to recycle powder more conveniently.
- Such design increases powder utilization and provides cleaner powder recycling.

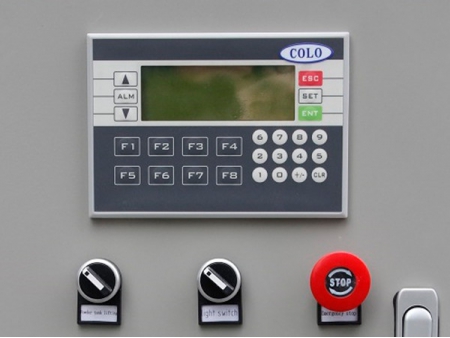

PLC Controller
- Full-function PLC controller offers more convenience and precision to set or adjust parameters.
- User-friendly control panel includes power switch, fan turn on/off switches, pulse cleaning timer and safety interlock switch, etc.
