Rain Gutter Roll Forming Machine
Request a Quote
| Raw Material | |
| Applicable Materials | GI (galvanized steel) GL (galvalume steel) PPGI (pre-painted galvanized steel) PPGL (pre-painted galvalume steel) AL (aluminum) CRC (cold rolled coil steel) HRC (hot rolled coil steel) |
| Material Thickness | 1-2.5mm (customizable) |
| Feeding Width | 400-600mm (customizable) |
| Effective Width | 150-300mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Size | Approx. 10×1.6×1.4m |
| Machine Weight | 7-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |
| Main Shaft | Diameter: Ø70mm, Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 20-25 stations |
| Motor Power | 5.5-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (5.5-11kW) |
| Cutting Blade Material | Cr12Mov (heat treatment, HRC 58-60) |
(Select from our standard profiles below, or send us your customized drawing)
Process

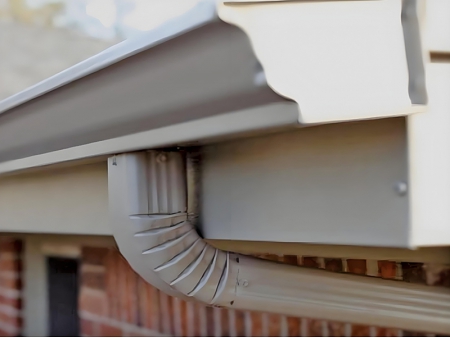

Machine Details and Finished Rain Gutters Decoiling → Feeding & Guiding→ Roll Forming → Automatic Cutting-To-Length → Finished Product Collection
Configurations| No. | Equipment | Quantity |
| 1 | 5T Manual Uncoiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Power Unit | 1 Set |
| 5 | Control System (including Cabinet) | 1 Set |
| 6 | Run-Out Table | 1 Set |
