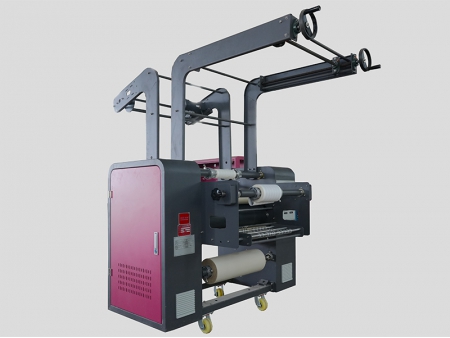

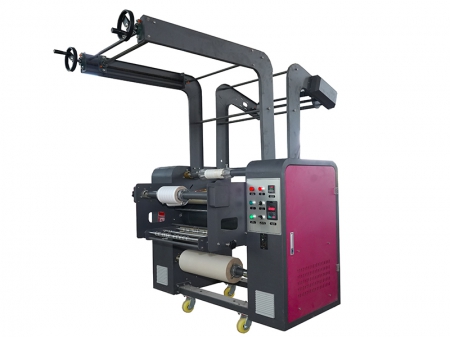

Ribbon Roller Heat Transfer Machine
Request a Quote
Ribbon roller heat transfer machine is a versatile heat transfer system widely used for double-sided printing and heat-shrinking processing of ribbons. It is suitable for textile and dyeing industries.
Features
- Supports double-sided ribbon printing and heat-shrinking processing to meet various production requirements.
- Equipped with high-quality imported components to enhance stability and durability.
- Uses 100% aramid felt, offering excellent high-temperature resistance and long service life.
- The roller features a seamless tube design with a Teflon-coated surface, ensuring uniform temperature distribution and reduced friction during heat transfer, thereby extending the machine’s service life.
Parameter
| Model | HCM-R206C |
| Drum dia. | 200 mm |
| Printing width | 600 mm |
| Voltage | 220V / 380V |
| Power | 7 kW |
| Printing speed | 50–100 m/h per pcs |
| Weight | 500 kg |
| Dimensions (L×W×H) | 1.7 × 1.4 × 1.7 m |
