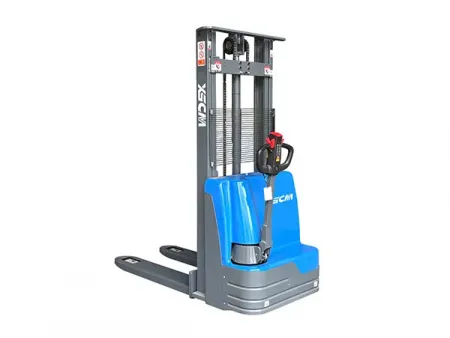

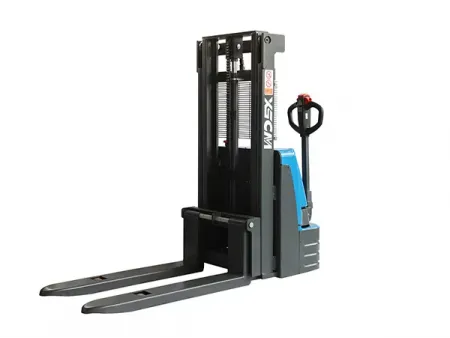

Walkie Electric Pallet Stacker
Request a Quote
Walkie stacker with maximum load capacity options of 1600kg and 2000kg
- Max. load capacity
1600-2000kg - Load center
600mm - Max. lifting height
1600mm - Travel speed (without load)
5.2km/h
Compact and easy to operate, the walkie electric pallet stacker is designed for efficient pallet handling in warehouses and production areas. It’s ideal for lifting, stacking, and short-distance transport in narrow spaces or confined aisles
- Drive type: electric walkie configuration
- Control system: DC drive control
- Wheel type: polyurethane (PU) wheels designed for indoor floors
Specifications
| Model | | |
| Max. load capacity | 1600kg | 2000kg |
| Load center | 600mm | 600mm |
| Max. lifting height | 1600mm | 1600mm |
| Travel speed (without load) | 5.2km/h | 5.2km/h |
| Travel speed (with load) | 4.8km/h | 4.8km/h |
| Lifting speed (without load) | 121mm/s | 121mm/s |
| Lifting speed (with load) | 81mm/s | 81mm/s |
| Lowering speed (without load) | 105mm/s | 105mm/s |
| Lowering speed (with load) | 103mm/s | 103mm/s |
| Gradeability (without load) | \ | \ |
| Gradeability (with load) | \ | \ |
| Service weight (with battery) | 656kg | 656kg |
| Dimensions | ||
| Overall length of frame | 1896mm | 1815mm |
| Overall width of frame | 800mm | 800mm |
| Overall height when mast lowered to lowest | 2090mm | 2090mm |
| Overall height when mast lifted to highest | 2090mm | 2090mm |
| Wheelbase | 1328mm | 1368mm |
| Fork length | 1150mm | 1150mm |
| Fork outside width | 680mm | 680mm |
| Fork inside width | 340mm | 300mm |
| Fork thickness | 65mm | 65mm |
| Fork height when fork lowered to lowest | 90mm | 90mm |
| Min. ground clearance | 15mm | 15mm |
| Theoretical width of minimum aisle for right-angle stacking (1200×1000) | 2415mm | 2615mm |
| Min. turning radius | 1540mm | 1650mm |
| Tire | ||
| Front wheel size | 85×70mm | 85×70mm |
| Drive wheel size | 210×75mm | 210×75mm |
| Caster wheel size | 130×55mm | 130×55mm |
| Wheel material | Polyurethane | Polyurethane |
| Electrical Components | ||
| Drive motor type | DC series motor | DC series motor |
| Rated output | 0.75kW | 0.9kW |
| Hoist motor type | DC series motor | DC series motor |
| Rated output | 2.2kW | 2.2kW |
| Battery | ||
| Voltage | 24V | 24V |
| Capacity | 80Ah | 80Ah |
| Weight | 26kg | 26kg |
Optional Mast
| Mast type | Max. fork height | Mast lowered height | Mast extended height |
| Simplex or duplex mast (2 stage) | STD16K | ||
| 2000mm | 1480mm | 2460mm | |
| 2500mm | 1730mm | 2960mm | |
| 3000mm | 1980mm | 3460mm | |
| 3500mm | 2230mm | 3960mm | |
| STD20K | |||
| 2000mm | 1480mm | 2460mm | |
| 2500mm | 1730mm | 2960mm | |
| 3000mm | 1980mm | 3460mm | |
| 3500mm | 2230mm | 3960mm | |
