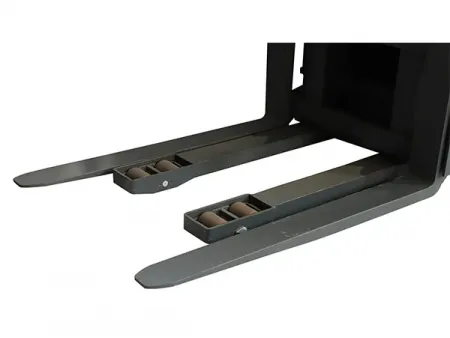

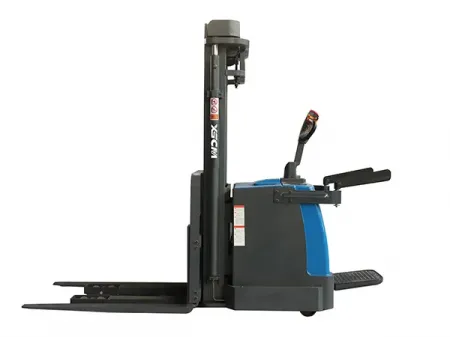

STD30N Stand-On Electric Pallet Stacker

STD30N Stand-On Electric Pallet Stacker
STD30N Stand-On Electric Pallet Stacker
STD30N Stand-On Electric Pallet Stacker
Request a Quote

Electric stacker with stand-on platform for lifting loads of up to 3000kg

  • Drive type
    electric, stand-on platform configuration
  • Maximum lifting height
    2500 mm
  • Load center
    500 mm
  • Maximum load capacity
    3000 kg

This stand-on electric pallet stacker is designed to handle heavy pallets smoothly and safely. Its strong lifting performance and stable travel control make it a practical choice for busy warehouses and logistics operations handling high-volume loads.

Specifications
Max. load capacity 3000kg
Load center 500mm
Max. lifting height 2500mm
Travel speed (without load) 6km/h
Travel speed (with load) 5.2km/h
Lifting speed (with load) 107mm/s
Lifting speed (without load) 62mm/s
Lowering speed (without load) 54mm/s
Lowering speed (with load) 52mm/s
Gradeability (without load) 7 %
Gradeability (with load) 6 %
Service weight (with battery) 1696kg

Dimensions

Overall length of frame 2169mm
Overall length of frame (with platform) 2585mm
Overall width of frame 1046mm
Overall height when mast lowered to lowest 1934mm
Overall height when mast lifted to highest 3513mm
Wheelbase 1570mm
Fork length 1070mm
Fork outside width 905mm
Fork inside width 655mm
Fork thickness 45mm
Fork height when fork lowered to lowest 70mm
Min. ground clearance 45mm
Theoretical width of minimum aisle for right-angle stacking (1200×1000) 2550mm
Min. turning radius (without platform) 1893mm
Min. turning radius (with platform) 2275mm

Tire

Front wheel size 85×85mm
Drive wheel size 260×105mm
Caster wheel size 130×55mm
Wheel material Polyurethane

Electrical Components

Drive motor type AC series motor
Drive motor power 3kW
Lift motor type DC series motor
Lift motor power 3kW

Battery

Voltage 24V
Capacity 210Ah
Weight 195kg

Mast

Simplex or duplex mast (2 stage) Max. fork height Mast lowered height Mast extended height
2500mm 1934mm 3513mm
3000mm 2184mm 4023mm
3500mm 2434mm 4533mm
4000mm 2684mm 5043mm
