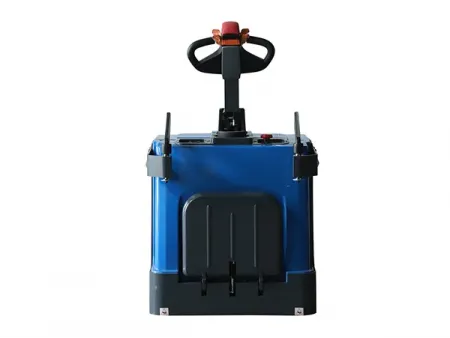

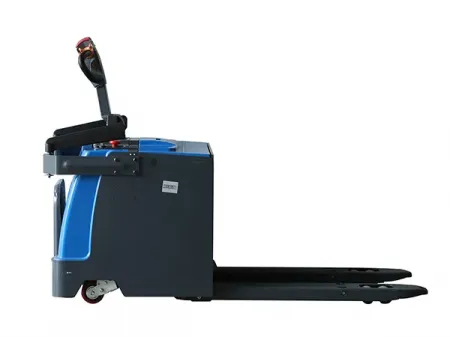

STT20/25/30 Stand-On Electric Pallet Truck
Request a Quote
Electric pallet jack with load capacity options of 2000kg, 2500kg and 3000kg
- Max. load capacity
2000-3000kg - Load center
600mm - Max. lifting height
200mm - Travel speed (without load)
5.5km/h
Applications
Designed for moving heavy loads across medium and long distances. It performs well in busy warehouses, logistics hubs, and factory workshops where speed, stability, and consistent efficiency are essential for daily operations.
Specifications
| Model | | | |
| Max. load capacity | 2000kg | 2500kg | 3000kg |
| Load center | 600mm | 600mm | 600mm |
| Max. lifting height | 200mm | 200mm | 200mm |
| Travel speed (without load) | 5.5km/h | 5.5km/h | 5.5km/h |
| Travel speed (with load) | 5km/h | 5km/h | 5km/h |
| Lifting speed (without load) | 35mm/s | 35mm/s | 35mm/s |
| Lifting speed (with load) | 30mm/s | 30mm/s | 30mm/s |
| Lowering speed (without load) | 57mm/s | 57mm/s | 57mm/s |
| Lowering speed (with load) | 57mm/s | 57mm/s | 57mm/s |
| Gradeability (without load) | 7% | 7% | 7% |
| Gradeability (with load) | 6% | 6% | 6% |
| Service height (with battery) | 685mm | 685mm | 685mm |
| Overall length of frame | 2280mm | 2280mm | 2280mm |
| Overall length of frame (with platform) | 2250mm | 2250mm | 2250mm |
| Overall width of frame | 800mm | 800mm | 800mm |
| Wheelbase | 1417mm | 1417mm | 1417mm |
| Fork length | 1150mm | 1150mm | 1150mm |
| Fork outside width | 685mm | 685mm | 685mm |
| Fork inside width | 365mm | 365mm | 365mm |
| Fork thickness | 60mm | 60mm | 60mm |
| Fork height when fork lowered to lowest | 85mm | 85mm | 85mm |
| Min. ground clearance | 5mm | 5mm | 5mm |
| Theoretical width of minimum aisle for right-angle stacking (1200×1000) | 2312mm | 2312mm | 2312mm |
| Min. turning radius (without platform) | 1625mm | 1625mm | 1625mm |
| Min. turning radius (with platform) | 2135mm | 2135mm | 2135mm |
| Front wheel size | 85×70mm | 85×70mm | 85×70mm |
| Drive wheel size | 230×75mm | 230×75mm | 230×75mm |
| Caster wheel size | 130×55mm | 130×55mm | 130×55mm |
| Wheel material | polyurethane | polyurethane | polyurethane |
| Drive motor type | AC series motor | AC series motor | AC series motor |
| Rated output (drive motor) | 1.5kW | 1.5kW | 1.5kW |
| Hoist motor type | DC series motor | DC series motor | DC series motor |
| Rated output (hoist motor) | 0.8kW | 1.2kW | 1.2kW |
| Voltage | 24V | 24V | 24V |
| Capacity | 210Ah | 210Ah | 210Ah |
| Weight | 195kg | 195kg | 195kg |
