Air-Cooled Gasoline Welding Generators (Single Cylinder)
Request a Quote

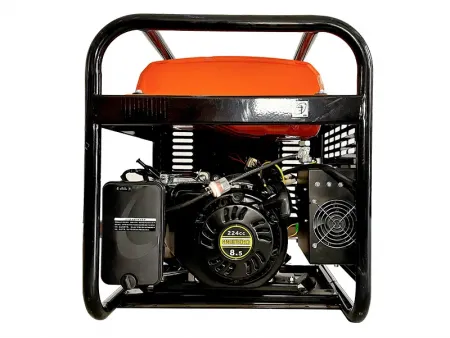

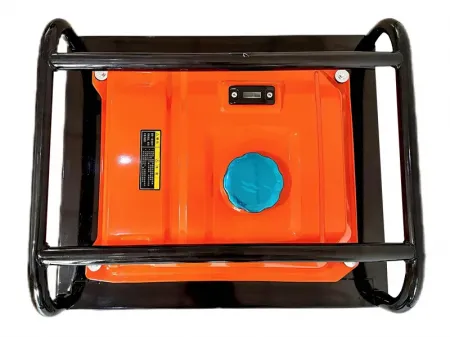

120A-180A Welding Generator
120A-180A Welding Generator
Features
- High-efficiency rare-earth permanent magnet generator
The air-cooled gasoline welding genset features a rare-earth (RE) permanent magnet (PM) generator that provides stable current and excellent overload capacity—achieving up to 20% higher efficiency than traditional generators. - Compact and lightweight
Designed with high mobility and easy storage, with a minimal footprint and light weight, making it suitable for mobile welding and outdoor field tasks. - Adjustable welding current
This gasoline-powered welding generator allows for simple, continuous adjustment of the welding current, offering better control and weld quality to meet various on-site welding requirements.
Specifications
| Model | | | |
| Welder | Welding Type | Manual welding | |
| No-Load Voltage (V) | 60-70 | 60-70 | |
| Welding Voltage (V) | 22-28 | 22-28 | |
| Welding Current (A) | 120 | 180 | |
| Load Continuous Rate | 60% | 60% | |
| Auxiliary Power | AC220V/1kW | AC220V/4kW | |
| Engine | Engine Model | 225-V | 225-V |
| Engine Type | 1 cylinder, air-cooled, OHV (overhead valve) | ||
| Bore Size×Stroke (mm) | 70×55 | 70×55 | |
| Displacement (cc) | 225 | 225 | |
| Starting System | Recoil start | ||
| Oil Capacity (L) | 0.6 | 0.6 | |
| Generator | Fuel Tank Capacity (L) | 15 | 15 |
| Noise Level (dBA/7m) | 78 | 78 | |
| Dimension | 560×490×540 | 560×490×540 | |
| Weight (kg) | 40 | 45 | |
