Air-Cooled Diesel Welding Generators (Single Cylinder)
Request a Quote
250A Welding Generator
250A Welding Generator
Features

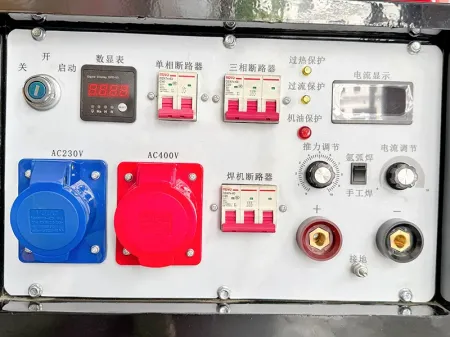

- Dual AC output in one generator
The diesel welding generators facilitate the provision of single-phase or three-phase alternating current (AC) outputs at equivalent power levels. This capability is suitable for welding operations as well as auxiliary tasks, including grinding, cutting, and lighting. - Automatic compensation and stable welding current
Incorporate automatic adjustments for voltage and thrust fluctuations, ensuring a consistent welding current. Offers excellent dynamic performance, rapid response times, minimal spatter, and robust arc penetration, with continuously and precisely regulated welding current. - Versatile field applications
Designed for various industries, such as electric power, municipal infrastructure, chemical pipelines, water supply, and gas line construction. The dual-fuel genset is ideal for both on-site repair and emergency welding operations.
Specifications
| Model | DB-AXC-250A | |
| Welder | Welding Type | Manual welding |
| No-Load Voltage (V) | 60-70 | |
| Welding Voltage (V) | 22-28 | |
| Welding Current (A) | 40-250 | |
| Load Continuous Rate | 60% | |
| Auxiliary Power | AC220V & AC380V/7kW | |
| Engine | Engine Model | KD195F |
| Engine Type | 1 cylinder, air-cooled, direct injection | |
| Bore Size×Stroke (mm) | 95×75 | |
| Displacement (cc) | 531 | |
| Starting System | Recoil/Electric Start | |
| Oil Capacity (L) | 1.5 | |
| Generator | Fuel Tank Capacity (L) | 20 |
| Noise Level (dBA/7m) | 88 | |
| Dimension (mm) | 948×622×608 | |
| Weight (kg) | 150 | |
