Air-Cooled Open Frame Diesel Generators (Single Cylinder) Manufacturer

Air-Cooled Open Frame Diesel Generators (Single Cylinder)

Request a Quote

View All: http://db-dieselgenerators.com/2-7-1-air-cooled-open-frame-diesel-generators.html

5kW-8kW Diesel Genset

Features

The air-cooled open frame genset’s engine features a full copper alternator with an automatic voltage regulator (AVR), ensuring stable power output, reliable excitation, and easy maintenance.

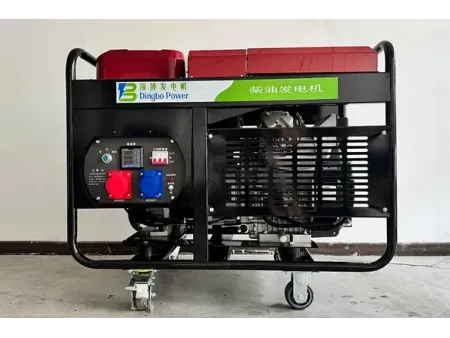

Built with a reinforced steel frame design for durability. It is equipped as standard with heavy-duty caster wheels to enhance mobility and maneuverability on-site.
The DC genset includes a low-oil level protection system and an overload circuit breaker to ensure safe and continuous operation.
Low-noise operation with customized muffler.

Product Details

Specifications

Genset Model		DB6500C 5kW Open Frame Diesel Generator	DB10000C 6kW Open Frame Diesel Generator	YD12000C 8kW Open Frame Diesel Generator
Alternator	Excitation Mode	Brushed, self-excitation, AVR (automatic voltage regulation)
	Prime Power (kW)	6	8	8
	Standby Power (kW)	6.5	8.5	8.5
	Rated Voltage (V)	220	220	220
	Frequency (Hz)	50	50	50
	Phase	Single phase
	Power Factor (COSφ)	1	1	1
	Insulation Class	F	F	F
Engine	Engine Model	KD192FE	KD1100FE	KD1100FE
	Bore Size×Stroke (mm)	92×75	100×85	100×85
	Displacement (cc)	499	668	668
	Engine Type	1 cylinder, air-cooled, direct injection
	Fuel Type	Diesel
	Oil Capacity (L)	1.5	2	2
	Starting System	Recoil/Electric Start
Genset	Fuel Tank (L)	20	25	25
	Noise Level (dBA/7m)	83	85	85
	Dimension (mm)	780×520×685	785×575×890	785×575×890
	Weight (kg)	123	148	148

Automatic Transfer Switch (ATS)

The generator is compatible with a fully automatic ATS control panel, which features status indicators for utility power, generator operation, automatic mode, and fault alarms.
When the ATS detects a utility power outage, the generator will start automatically, and the ATS will transition the power supply to the generator. Once utility power is restored, the system will implement a delay shutdown period of 30 to 60 minutes, after which the ATS will automatically switch back to grid power.
The ATS configuration guarantees an uninterrupted power supply with seamless transitions, supported by a vertical single-cylinder, 4-stroke, forced air-cooled engine recognized for low emissions and stable performance.
