Air-Cooled Open Frame Gasoline Generators (Twin Cylinder) Manufacturer

Air-Cooled Open Frame Gasoline Generators (Twin Cylinder)

Request a Quote

View All: http://db-dieselgenerators.com/6-4-2-air-cooled-open-frame-gasoline-generators.html

10kW-20kW Gasoline Genset

Features

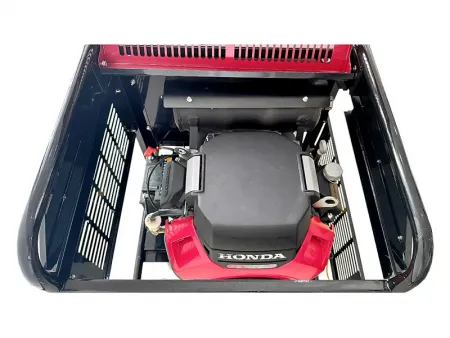

The air-cooled open frame gasoline generator is equipped with a V-type twin-cylinder 4-stroke, forced air-cooled gasoline engine that delivers a powerful and stable output with low emissions—ideal for industrial and field applications.

The gasoline generator features a high-performance copper alternator with automatic voltage regulation (AVR), providing a consistent output even under fluctuating load conditions.

The generator is constructed with a heavy-duty reinforced steel frame with an anti-corrosion coating to enhance durability. Integrated caster wheels improve mobility across various environments.

It is equipped with a comprehensive protection system, including low oil level shutdown and overload protection, to prevent engine damage and ensure reliable long-term operation.

Furthermore, it is fitted with a customized muffler system that reduces operational noise, making it suitable for use at construction sites, workshops, or rural power supply.

Specifications

Genset Model		DB12500E	DB15000E	DB18000E	DB25000E
Alternator	Excitation Mode	AVR (automatic voltage regulation)	AVR (automatic voltage regulation)	AVR (automatic voltage regulation)	AVR (automatic voltage regulation)
	Rated Output Power (kW)	10	12	15	18
	Max. Output Power (kW)	11	13	16	20
	Rated Voltage (V)	230	230	230	230
	Rated Current (A)	43.5	52.2	65.2	78.2
	Max. Current (A)	47.8	56.5	59.5	86.9
	Rated Frequency (Hz)	50	50	50	50
	Phase	Single phase	Single phase	Single phase	Single/three phase/double voltage
	Power Factor (COSφ)	1.0	1.0	1.0	1.0/0.8
	Insulation Class	F	F	F	F
Engine	Engine Model	DH720	DH760	DH999	DH999
	Bore Size×Stroke (mm)	78×70	82×76	90×78.5	90×78.5
	Displacement (cc)	720	760	999	999
	Fuel Consumption (g/kWh)	≤374	≤374	≤374	≤374
	Ignition	Electronic ignition
	Engine Type	2 cylinder, 4-stroke, air-cooled
	Fuel Type	90# lead-free gasoline
	Oil Capacity (L)	1.5	1.5	2.4	2.4
	Starting System	Electric Start
Genset	Fuel Tank (L)	30	30	30	30
	Battery	12V-32AH maintenance-free battery	12V-32AH maintenance-free battery	12V-45AH maintenance-free battery	12V-45AH maintenance-free battery
	Noise Level (dBA/7m)	83	83	85	85
	Dimension (mm)	960×620×650	960×620×650	1050×680×720	1050×680×720
	Weight (kg)	170	174	200	214
