SDA Bolt System Components

Anchor Nut

Hexagonal / spherical nuts for enhancing the stability of the anchoring system

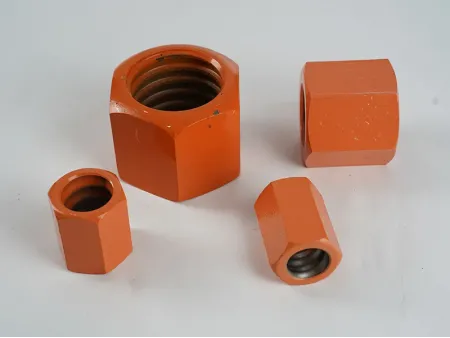

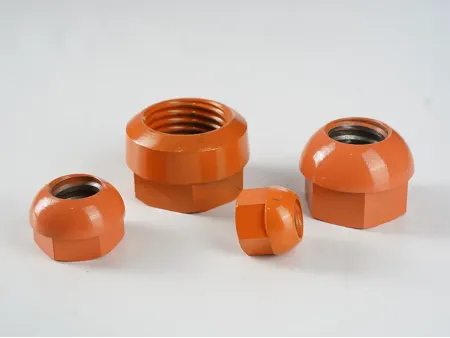

The self-drilling anchor nut secures the entire self-drilling anchor system, ensuring it remains fixed at the designated anchoring point. It is available in both hexagonal and spherical types, and it reliably transfers load from the anchor plate to the anchor bar. To account for angular deviations, at least one end of the nut is designed with a spherical cap.

All anchor nuts are engineered to safely transfer the specified system load, guaranteeing reliability and stability.

Functions

Secures and locks the anchoring system.
Available in hexagonal and spherical configurations.

Specifications

Size	SW (mm)	L (mm)	Unit Weight (kg)

R25	41	41	0.3
R32	46	45	0.35
R32	46	65	0.45
R38	50	60	0.5
R51	75	70	1.55
T76	100	80	2.8

R32	46	45	0.45
R38	50	50	0.6
R51	75	70	1.6
T76	100	90	3.2
T30	46	35	0.42
T40	65	50	0.9
T52	80	70	2.2
T73	95	70	2.2
T103	125	80	3.4
T127	140	140	9.2
Steel grade	As per request
Thread direction	Left hand / Right hand
Thread standard	ISO 10208 / ISO 1720/ Other international standards
Hardness (HRC)	HRC25-HRC30
Features	All nuts are machined and with chamfered edges to suit both domed plates and flat plates.
