JW-JDC1 Form-Fill-Sealing Systems with Rotary Bagger, 10 Head Weigher Manufacturer

JW-JDC1 Form-Fill-Sealing Systems with Rotary Bagger, 10 Head Weigher

Request a Quote

View All: http://jwweigher.com/9-3-1-pre-made-pouch-packaging-line.html

Rotary packing machine
Working platform
10 heads weigher
Z-shaped elevating conveyor
Vibratory feeder

The JW-JDC1 pre-made pouch packaging line with rotary bagger is composed of the rotary packing machine, working platform, 10 heads weigher, Z-shaped elevating conveyor and vibratory feeder. We have developed this packing system with 6 or 8 working stations for customers to choose from.

The rotary packing machine with 6 working stations is able to finish pouch picking, label printing, pouch opening and filling, heat sealing and finished product discharging, making this line applicable to standard flat or stand-up pouches, and materials with an excellent flow rate and less powder.
The rotary packing machine with 8 working stations is able to finish pouch picking, label printing, pouch opening, filling I, filling II, heat sealing I, heat sealing II and finished product discharging, making it applicable to pouches or bags with a zipper or shaped. It is used to pack fluffy, powder, pieces, or blocked products that are sticky and do not flow well.

Range of application

Applicable products: Granules, pieces, strips, round or irregular shaped products such as candies, snacks, pet foods, puffed foods, hardware, rubber parts and more.

Re-made bag packaging materials: Paper-plastic composite, plastic-plastic composite, aluminum-plastic composite, PE composite, multilayer composite, silicon dioxide film, aluminum foil, single layer PE, PP material and more.

Pouch types: 3 side seal pouches, 4 side seal pouches, flat pouches, flat pouches with zipper, stand-up pouches, stand-up pouches with zipper, shaped stand-up pouches, shaped flat pouches and more.

Technical parameters

Packaging speed	65 P/M
Single weighing range	10-1000g
Film width	180-620mm
Film thickness	0.04mm-0.15mm
Packing machine power	3.6KW
Packing machine voltage	220V
Multihead weigher power	1000W
Multihead weigher voltage	220V

Note: The provided parameters are for reference only, and we can manufacture pre-made pouch packaging lines with a rotary bagger according to your product types, weighing range, factory area and output.

Selective assembly equipment

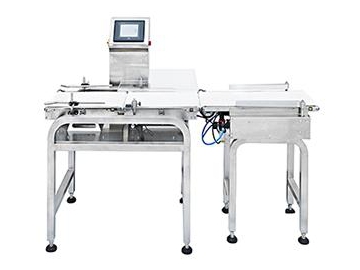

Check weigher

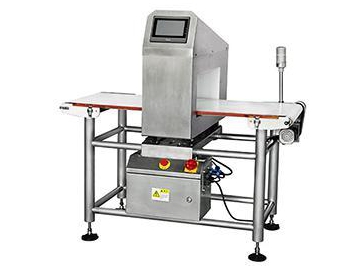

Metal Detectors

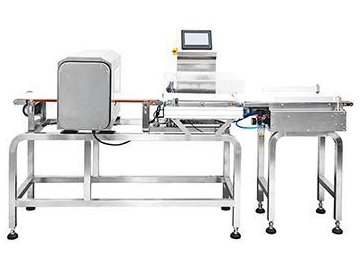

Combined metal detector and check weigher

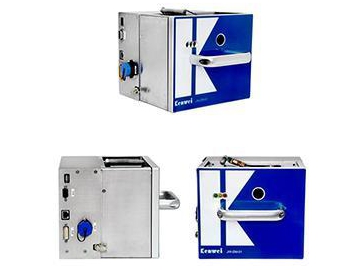

Thermal Transfer Overprinter

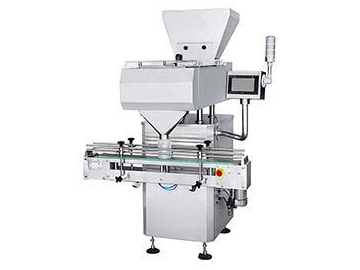

Count verification machine

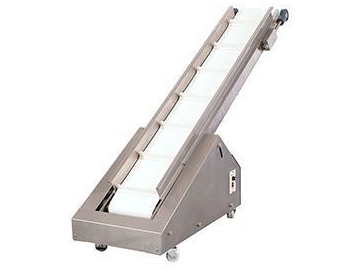

Conveyor equipment

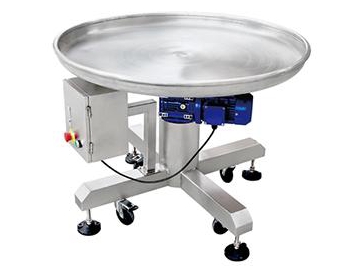

Accessories
