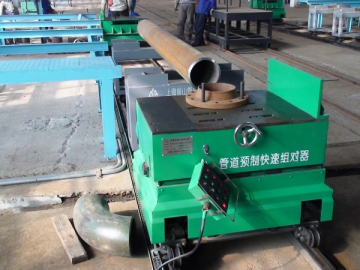

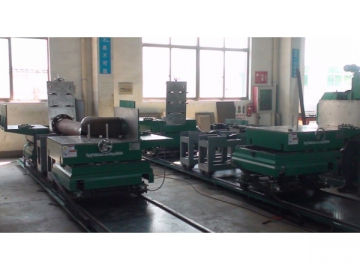

Piping Fabrication Fast Fitting-Up Machine
Piping Fabrication Fast Fitting-Up Machine
Model: PPFUM-16A1/A2/ A3/A4; PPFUM-24A1/A2/ A3/A4
Features
1. The piping fabrication fast fitting-up machine offers fit-up and tack welding of the straight pipe with fittings such as flange elbow, tee, etc. directly.
2. The machine increases the efficiency and quality of pipe-fittings such as flange elbow, tee, etc. fitting-up.
3. The piping fabrication fast fitting-up machine requires fewer skills for fitting-up pipes and flanges and reduces work difficulty for the operators.
Applications
The piping fabrication fast fitting-up machine is used for standard wall thickness pipes and fittings (A1/A2) and heavy wall thickness pipe and fittings (A3/A4).
Technical Parameters of the Piping Fabrication Fast Fitting-Up Machine
Pipe Diameter Applicable: DN150～400(φ168～426); DN150～600(φ168～610)
The Longest Pipe: 6M (or depending on the situation)
Fitting-up System: 1set/2 sets/1set/2 sets
Moving Up/Down: With screw lifter, driven electrically
Moving Left/Right: Linear guiding rail, driven and movement electrically
Vertical Turnover: With screw lifter, driven electrically
Lengthwise Moving: Motorized driving square-steel track
Max Loading Capability: 500KG/500KG/1000KG/1000KG; 750KG/750KG/1500KG/1500KG
Bracket System: 2 sets
Max Loading Capability: 2,500KG
Lengthwise Moving: Manually driving
Track System: 1 set
Track Length: 7.5M (or depending on the situation)
Track Type: Square-steel track
Qianshan is a China-based piping fabrication fast fitting-up machine manufacturer and supplier. Our company also provides pipe plasma beveling and cutting machine, automatic piping welding workstation, axial pipe end beveling machine, longitudinal pipe automatic conveying system, and more.
