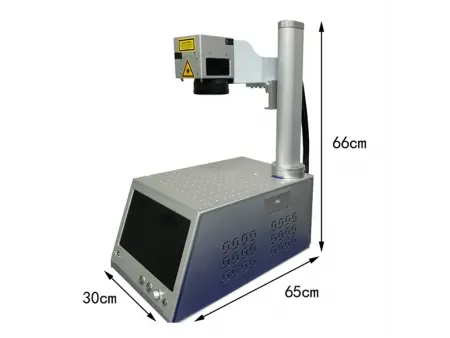

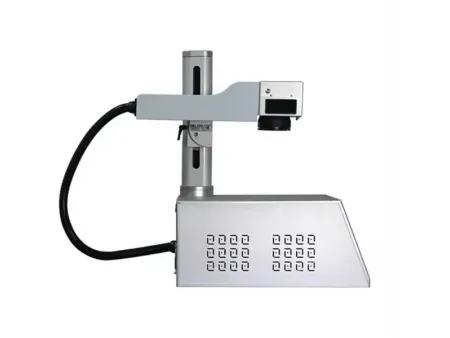

All-in-one Fiber Laser Marking Machine
- Output Power: 20 / 30W
- Marking range: 110x110mm
- Precision: ±0.003mm
- Speed: 0-8000mm/s
The model all-in-one fiber laser marker LS-YLP-20L, with the small body and power marking function. From marking logos, barcodes, serial numbers, and even complex patterns, our all-in-one model fiber laser marking machine ensures quality results on various applications.
Small in size but big on performance, this machine is perfect for limited space and small-scale marking projects. Its compact design and lightweight body make it highly portable and easy to maneuver, ensuring high precision and accuracy in every marking. This machine is built to deliver powerful laser marking at high speed and with exceptional efficiency.
With its compact design, this all-in-one fiber laser marking machine is perfect for small businesses, workshops, and DIY enthusiasts. So, if you’re looking for a reliable and efficient marking solution that won’t take up too much space, this mini fiber laser marking machine is the perfect choice for you.
| Model | ||
| Voltage | 110V~220V | |
| Fiber Laser Source | Maxphotonics (Raycus,JPT,MAX,IPG) | |
| Output Power | 20W / 30W | |
| Laser wavelength | 1064nm | |
| Modulation frequency range | 20-100kHz | |
| Speed | 0-8000mm/s | |
| Precision | ±0.003mm | |
| Minimum line width | 0.015mm | |
| Minimum height of characters | 0.15mm | |
| Cooling way | Air cooling | |
| Marking range | 110x110mm | |
| Laser power supply | 0.5KW,220V/50Hz, 110V/60HZ | |
| Software | Auto-cad, CorelDraw, Photoshop software compatible | |
| Rotary device | Optional Computer system:Windows xp,Windows 7 32bits | |
| Weight | 31KG | |
| Wooden case packing size | 60*30*66cm | |
| Packing weight | 52KG | |
