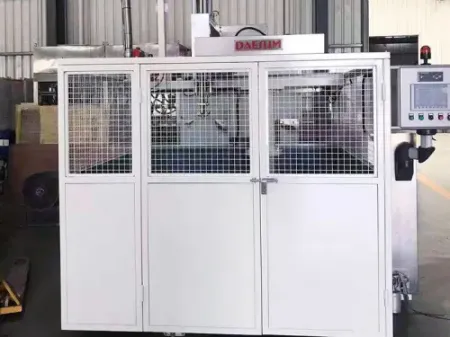

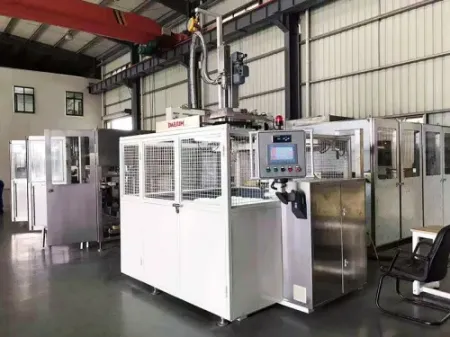

Automatic Filling Machine for Jerrycans, Drums and IBCs
- Filling range 25L-1000L
- Container type plastic/steel drum, IBC tote
This fully automatic filling machine supports forklift-assisted loading, manual decapping, automatic alignment, automatic quantitative filling, and forklift-assisted unloading, forming an efficient and streamlined process.
The automatic alignment system is available in two configurations: vision-based and mechanical-based bunghole seeking. Vision-based alignment offers high flexibility and compatibility with multiple drum types, while mechanical-based alignment provides a cost-effective and highly stable solution.
Optional configurations include multiple filling lances, powered roller conveyors, explosion-proof motors, fume hoods, and safety guardrails to meet various operational and safety requirements.
- Filling range: 25L-1000L
- Filling speed: 100-120 drums/hour (25L per drum), 30-40 drums/hour (200L per drum), 8-10 drums/hour (1000L per drum), depending on material properties and supply pressure
- Container type: plastic/steel drum, IBC tote
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-2
- Max. weighing capacity: 1500kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: length is customized according to site layout, standard depth approx. 3m, height not exceeding 3.8m
- Automatic feeding: No
- Automatic bunghole positioning: Yes
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic cap placement: No
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
- Automatic opening detection and alignment, reducing manual labour
- Compact footprint with low site requirements
- Wide container compatibility; mechanical alignment supports 1-2 drum types, while vision-guided alignment accommodates multiple drum types with greater flexibility
- Highly integrated structure for convenient installation and simple operation
- When equipped with powered roller conveyors, the system can be integrated with labeling and wrapping processes for streamlined operation
Designed for automatic alignment and quantitative filling of lubricants, antifreeze, adhesives, cleaning liquids, detergents, and various chemical materials.
The filling machine is also suitable for high-viscosity products, toxic and hazardous substances, as well as flammable and explosive materials, meeting the requirements of automated filling operations in demanding industrial environments.
