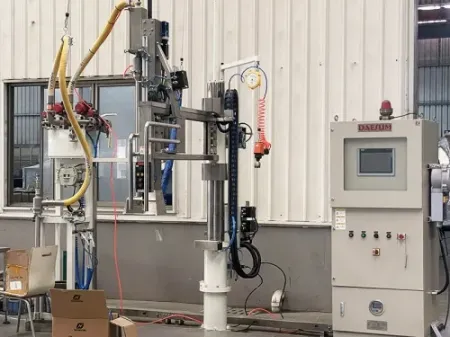

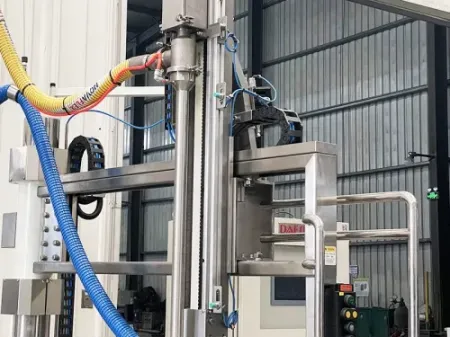

Semi-Automatic Filling Machine for IBCs, Drums, Pails and Totes
Request a Quote
Website: https://filling-solutions.com/semi-automatic-filling-machine-ibcs-drums-pails-totes-2-3.html
Specifications
- Model: GZ1T-A
- Filling range: 25-1000L
- Filling speed: 100-120 containers/hour (25L per container), 30-40 containers/hour (200L per container), 8-10 containers/hour (1000L per container), depending on material properties and supply pressure
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-2
- Max. weighing capacity: 1500kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Equipment dimensions: length is customized according to site layout, standard depth approx. 3m, height not exceeding 3.8m
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
Automation Level
- Automatic feeding: No
- Automatic bunghole positioning: No
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic cap placement: No
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
Features
- Offers low capital expenditure, a compact footprint, and minimal facility requirements.
- Supports a “one lance per product” configuration. The multi-lance design allows a single machine to handle diverse materials, with expandability up to 5-10 filling lances.
- Offers broad container coverage, accommodating sizes from 25L to 1000L with high operational flexibility.
- Integration with powered roller conveyors enables labeling and wrapping operations.
- Typical throughput (single station):
200L Drums: 35-40 drums/hour
IBCs: 8-10 units/hour
Applicable Industries
Chemical, petrochemical, building materials, grain processing, pharmaceutical, electronics, and food industries.
