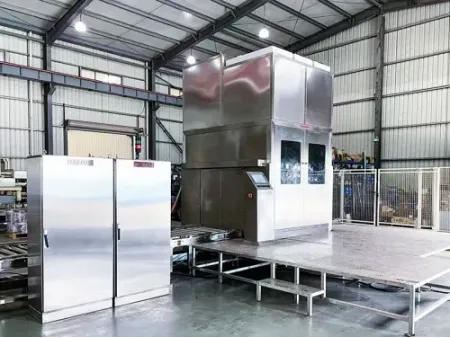

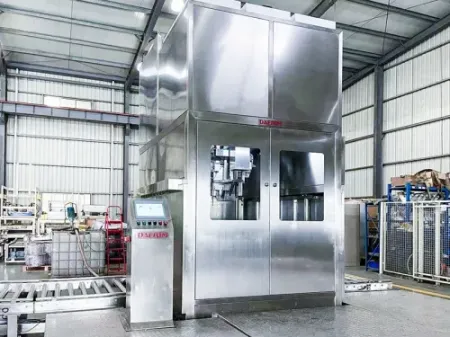

Automatic Filling Machine for Palletized Drums and IBCs
Request a Quote
Specifications
- Filling speed:
Double station: 70-80 drums/hour (200L per drum), 16-20 containers/hour (IBC)
Single station: 35-40 drums/hour (200L per drum), 8-10 containers/hour (IBC) - Depending on material properties and supply pressure
- Filling range: 200-1000L
- Container type: plastic/steel drum, IBC tote
- Filling method: gravimetric filling
- Conveyor type: linear conveyor
- Number of filling stations: 1-2
- Max. weighing capacity: 1500kg
- Scale interval: 100g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
- Equipment dimensions: length is customized according to site layout, standard depth approx. 3m, height not exceeding 4m
Automation Level
- Automatic feeding: No
- Automatic bunghole positioning: Yes
- Automatic cap loosening: Yes
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
Features
- End-to-end automation of the entire filling process, significantly reducing labor costs.
- A single filling machine can handle multiple container types and various materials.
- Constant-torque cap loosening and tightening, suitable for plastic, steel, and other standard drum types.
- Enclosed filling cabin design, ideal for handling toxic, hazardous, and volatile materials.
- Supports extended roller conveyors to achieve a fully automated workflow, including labeling, wrapping, and final dispatch.
Recommended Applications
Suitable for high-efficiency automated filling of lubricants, antifreeze, adhesives, cleaning agents, liquid detergents, and various industrial chemicals.
The system supports the end-to-end automated cycle of decapping, alignment, quantitative filling, and capping. It is specifically engineered to meet the stringent filling requirements for high-viscosity, toxic, hazardous, and flammable/explosive materials.
