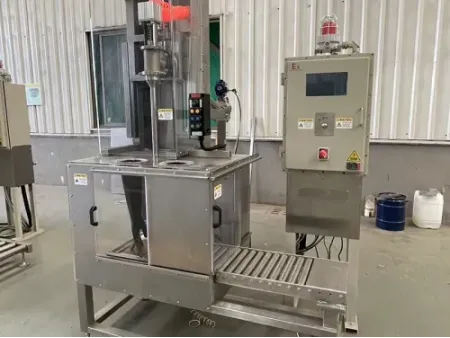

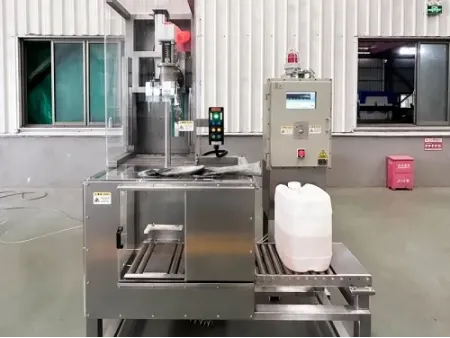

Semi-Automatic Filling Machine for Pails and Jerrycans
Request a Quote
Specifications
- Filling speed: 100-120 containers/hour (single station), 150-200 containers/hour (double station), depending on material properties and supply pressure
- Filling range: 5-40L
- Container type: plastic/steel jerrycan
- Number of filling stations: 1-2
- Max. weighing capacity: 40kg
- Scale interval: 10g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Equipment dimensions (L×W×H): 1460×850×1715mm
- ATEX/EX: applicable
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
Automation Level
- Automatic feeding: No
- Automatic bunghole positioning: No
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic cap placement: No
- Automatic capping/tightening: No
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
Features
- Low equipment investment, compact footprint, and minimal site requirements.
- Can be moved under different reactors for filling operations, offering high flexibility.
- Suitable for container sizes from 5L to 40L, allowing multiple container types to be filled on a single machine.
- Typically configured with dual stations, achieving filling speeds of 150-200 containers per hour.
- Ideal for low-volume production with multiple product types.
Recommended Applications
Suitable for lubricant packaging, antifreeze repacking, chemical material filling, and coating applications.
To find more about our filling equipment, please contact us.
