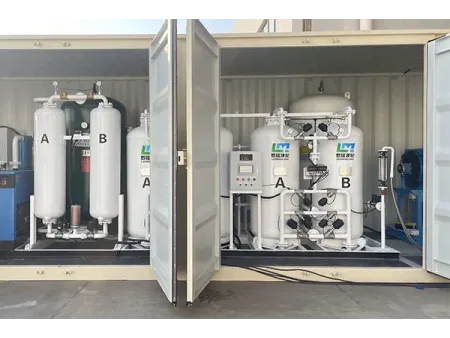

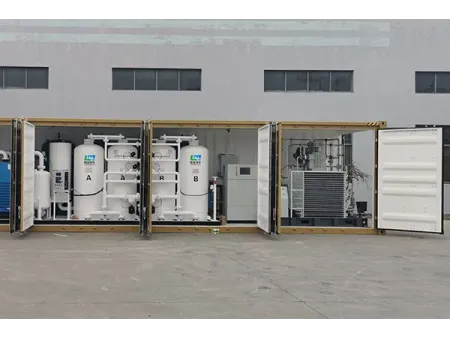

Container Type Oxygen Generation System
Custom-Built PSA Oxygen Generator
The containerized oxygen generator adopts an integrated modular design combined with mature PSA technology. Designed for outdoor deployment, temporary sites, and mobile applications, the working process includes feed air pretreatment, PSA oxygen and nitrogen separation, oxygen delivery, and adsorbent regeneration. Compared with conventional PSA oxygen generators, the containerized unit offers enhanced mobility and compact layout. It is a true turnkey solution, no dedicated equipment room, installation, or on-site commissioning is required. Plug-and-play deployment enables rapid startup. Qualified oxygen output is available within 30 minutes, making this configuration suitable for emergency oxygen supply and mobile applications.
- Oxygen capacity: 1-120Nm³/h (standard conditions)
- Oxygen purity: 93%±2% (per Chinese National Standard)
- Outlet pressure: 0.1-0.55MPa (gauge, stable and adjustable)
- Oxygen dew point: ≤-40°C (at atmospheric pressure)
| Model | Flow rate (Nm³/h) | Feed air (Nm³/h) | Power (W) | Dimensions (L×W, mm) |
| 5 | 60 | 800 | 1600×1200 | |
| 10 | 120 | 800 | 1800×1500 | |
| 20 | 240 | 800 | 2000×1600 | |
| 30 | 360 | 800 | 2200×1800 | |
| 40 | 480 | 800 | 2400×1800 | |
| 50 | 600 | 800 | 2600×1800 | |
| 60 | 720 | 800 | 2600×1800 | |
| 80 | 960 | 800 | 2800×1800 | |
| 100 | 1,200 | 800 | 3500×2200 | |
| 120 | 1,440 | 800 | 3600×2200 | |
| 150 | 1,800 | 800 | 3800×2300 | |
| 180 | 2,160 | 800 | 4000×2300 | |
| 200 | 2,400 | 800 | 5200×2300 |
Customers may select standard containers or customized container dimensions. The container functions as a mobile gas generation workshop. Luoming provides the following upgrade options based on project requirements.
- Thermal Foam
High-performance thermal insulation ensures reliable operation in extreme cold or sub-zero regions. - Integrated Alternator
Integrated generator installation supports independent power supply. - Ventilation Fans
Ventilation fan installation ensures effective heat dissipation. - Door opening configuration (Side door opening)
Flexible door configurations (front and side) allow for convenient operation and maintenance access. - Door opening configuration (Front door opening)
Flexible door configurations (front and side) allow for convenient operation and maintenance access. - Air-conditioning unit
Air-conditioning installation maintains stable operating temperature. - Lighting system
Integrated lighting supports safe operation and maintenance.
