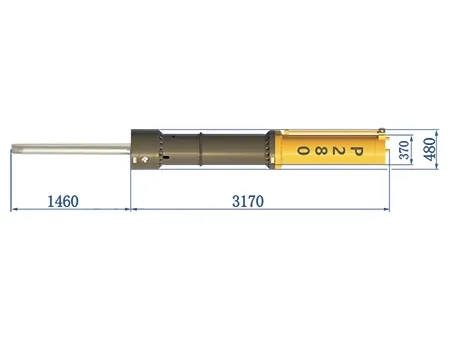

The hydraulic excavator-mounted rock splitter is a heavy-duty system comprised of two primary modules: the ultra-high-pressure hydraulic pump station (power unit) and the splitting actuator (the splitter).

Utilizing a two-stage pressure intensification structure, the rock splitter delivers a maximum splitting force of 15,000 tons. This power profile makes it uniquely suited for the high-strength static demolition of massive hard rock formations and heavily reinforced concrete.

The excavator-mounted splitter is optimized for a Ø135mm borehole diameter with a 2-meter drilling depth capacity. By maintaining a hole spacing of 1600-1800mm, the splitter achieves an ideal balance between fragmentation effectiveness and overall construction efficiency.

• Precision Mining & Quarrying: Extraction of both metallic and non-metallic ores.
• Structural Demolition: Partial or total demolition of reinforced concrete structures, including cement pavements, heavy machine foundations, bridge spans, and structural building components.
• Hydropower Engineering: The removal and stabilization of hazardous rock formations on slopes within water conservancy and hydropower projects.
• Urban Infrastructure: Trenchless pipeline excavation and the removal of massive boulders that obstruct construction paths; Rock breaking within real estate foundation pits.
