NC Semi-Automatic Tube Bending Machine
Request a Quote
Efficient solution for small-batch, multi-variety tube bending production

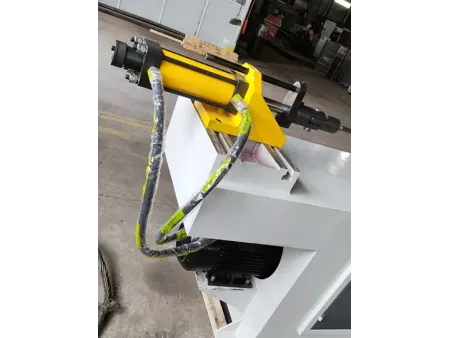

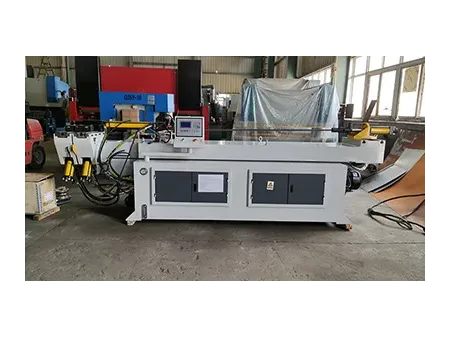

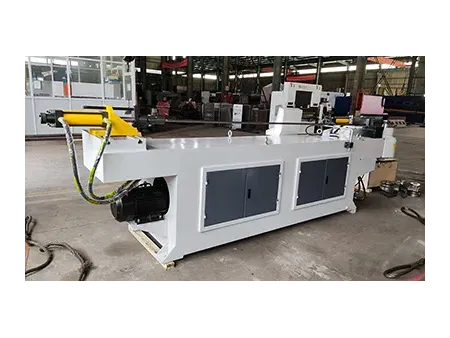

The NC semi-automatic tube bending machine features a single hydraulic bending head, specially designed for manufacturing asymmetrical tube parts. It is ideal for small-batch and high-mix production environments that require frequent mold changes.
Equipped with a fast mold interface system, this machine allows for rapid tool change and minimal adjustment, enabling immediate bending operations. Suitable for various industries, including automotive exhaust systems, furniture manufacturing, and construction piping, this machine ensures precise and stable bending results.
Technical Parameters
| Model | ||||
| Round tube – steel (diameter×wall thickness) (mm) | Ø25×2.0 | Ø32×2.0 | Ø50×2.0 | Ø65×2.0 |
| Round tube - nonferrous metal (diameter×wall thickness) (mm) | Ø18×2.0 | Ø28×1.5 | Ø42×1.5 | Ø60×1.5 |
| Square tube - metal (side length×wall thickness) (mm) | 20×20×2.0 | 25×25×1.5 | 35×35×2.0 | 50×50×2.0 |
| Round bar (mm) | Ø12 | Ø20 | Ø30 | Ø35 |
| Bending speed (deg/sec) | 220 | 220 | 220 | 220 |
| Bending accuracy (deg/sec) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Feeding speed (mm/sec) | 1200 | 1000 | 800 | 700 |
| Feeding accuracy (degree) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Tube transfer speed (deg/sec) | 300 | 300 | 200 | 200 |
| Tube transfer accuracy (degree) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Machine weight (kg) | 1200 | 1400 | 2000 | 3500 |
