Custom Nitrogen Generation System

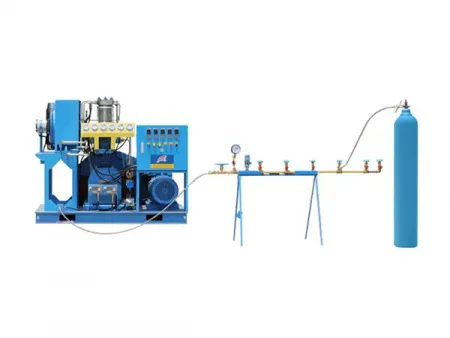

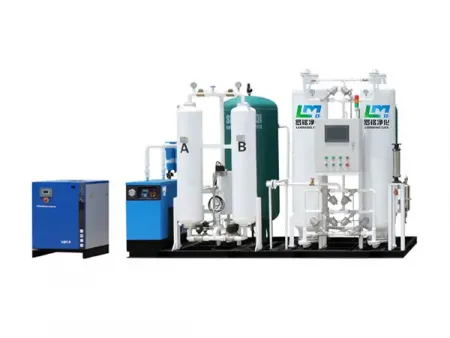

Custom-Built PSA Nitrogen Generator with Nitrogen Filling Station
The nitrogen filling station enables on-site nitrogen generation and cylinder filling, reducing cylinder procurement and transportation costs. On-site nitrogen production lowers storage pressure requirements and supports flexible filling operations. Surplus nitrogen can be filled into cylinders for external supply, improving overall economic efficiency. Nitrogen filling equipment supports industries requiring inert atmospheres and high-purity nitrogen. Cost efficiency, continuous availability, and environmental benefits make this configuration a valuable investment for improving operational efficiency and product quality. Industrial growth continues to expand demand for nitrogen filling across multiple application sectors.
- Nitrogen capacity: 1-3000Nm³/h
- Nitrogen purity: 95%-99.9995%
- Outlet pressure: 0-0.65MPa
- Atmospheric dew point: ≤-40°C
- High nitrogen purity, reaching up to 99.9995%.
- Rapid startup with qualified nitrogen available within 30 minutes.
- Real-time online monitoring and display of nitrogen purity, flow rate, and pressure.
- Fully automatic control supporting unattended operation.
- Skid-mounted integrated structure with compact footprint and convenient installation.
- Customized pressure and dew point options on demand, with dew point down to -70°C available.
Parameters (model structure applies similarly to 99%, 99.5%, 99.9%, 99.99%, and 99.999% configurations)
| Model | Purity | Nitrogen capacity (Nm³/h) | Inlet nominal diameter | Outlet nominal diameter |
| 99% | 1 | DN15 | DN15 | |
| 99% | 5 | DN15 | DN15 | |
| 99% | 10 | DN15 | DN15 | |
| 99% | 20 | DN20 | DN15 | |
| 99% | 30 | DN20 | DN25 | |
| 99% | 40 | DN20 | DN25 | |
| 99% | 50 | DN32 | DN25 | |
| 99% | 100 | DN32 | DN40 | |
| 99% | 120 | DN40 | DN40 | |
| 99% | 150 | DN40 | DN40 | |
| 99% | 200 | DN50 | DN40 | |
| 99% | 500 | DN80 | DN40 | |
| 99% | 800 | DN100 | DN80 | |
| 99% | 1000 | DN100 | DN100 | |
| 99% | 2000 | DN125 | DN100 | |
| 99% | 3000 | DN125 | DN125 |
