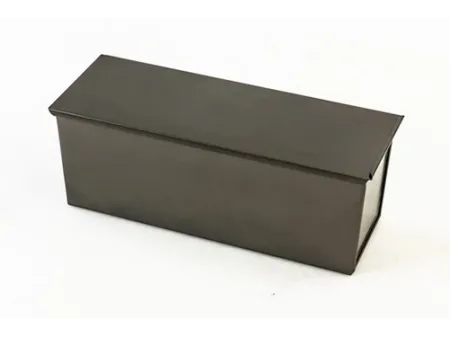

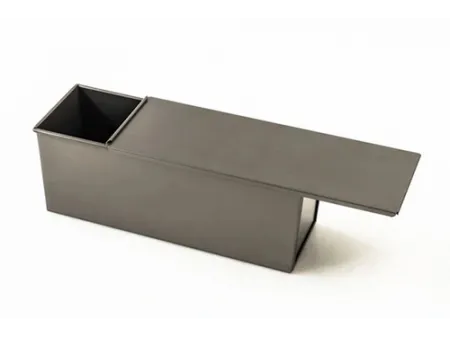

Single Loaf Pan
T-Shine offers a wide selection of standard-sized single loaf pans and also accommodates custom dimensions. We additionally manufacture corrugated loaf pans, perforated loaf pans, and other structural variations to meet customers’ specific production needs.
Material Properties
The flat baking tray is available in aluminized steel and aluminum alloy (5052 aluminum-magnesium alloy).
Aluminized steel features excellent thermal conductivity, long service life, and strong resistance to deformation. Its material properties ensure even baking, preventing scorching or underbaking. The outstanding drawability of aluminized steel enables the production of one-piece deep-drawn loaf pans, forming the pan in a single stamping process without joints or seams. This seamless structure minimizes residue buildup, facilitates cleaning, and effectively ensures food hygiene.
Aluminum alloy loaf pans are thin and lightweight, offer fast heat transfer, and are easy to use. They are formed using an interlocking (seaming) process, which avoids the instability risks associated with welding and enhances overall structural reliability.
Materials Comparison
| Item | Aluminized Steel | Aluminum |
|---|---|---|
| Weight | Heavy | Lightweight |
| Heat Conductivity | Moderate | Fast |
| Price | Lower | Higher |
| Firmness | Excellent | Good |
Product Sample
Specifications
| Model | Surface Treatment | Material | Thickness | Special Design | Top Dimensions | Bottom Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| | PTFE | Al-alloy | δ1.0 mm | 325×106×122 mm | 316×100 mm | 900 g | |
| | PTFE | Al-alloy | δ1.0 mm | Corrugated | |||
| | PTFE | Al-alloy | δ1.1 mm | ||||
| Lid | Hard Anode | δ1.1 mm |
| Model | Surface Treatment | Material | Thickness | Special Design | Top Dimensions | Bottom Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| | PTFE | Al-alloy | δ1.0 mm | - | 327×121×121 mm | 312×119 mm | 1000 g |
| | PTFE | Al-alloy | δ1.0 mm | Corrugated | |||
| | PTFE | Al-alloy | δ1.1 mm | - | |||
| Lid | Hard Anode | - | δ1.1 mm | - |
| Model | Surface Treatment | Material | Thickness | Special Design | Top Dimensions | Bottom Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| | PTFE | Al-alloy | δ1.0 mm | 370×120×125 mm | 361×116 mm | 1200 g | |
| | PTFE | Al-alloy | δ1.0 mm | Corrugated | |||
| | PTFE | Al-alloy | δ1.1 mm | ||||
| Lid | Hard Anode | - |
| Model | Surface Treatment | Material | Thickness | Special Design | Top Dimensions | Bottom Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| | No Coating | Al-alloy | δ1.0 mm | 217×94×77 mm | 209×84 mm | 385 g | |
| | PTFE | Al-alloy | δ1.0 mm | ||||
| | No Coating | Al-alloy | δ1.0 mm | ||||
| | PTFE | Al-alloy | δ1.0 mm | Corrugated |
| Model | Surface Treatment | Material | Thickness | Special Design | Top Dimensions | Bottom Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| | PTFE | Al-steel | δ0.8 mm | Corrugated | 195×106×110 mm | 190×101×110 mm | 450 g |
Lid of Bread Pan
| Model | Surface Treatment | Material | Thickness | Special Design | Dimensions | Weight |
|---|---|---|---|---|---|---|
| | No Coating | Al-alloy | δ1.0 mm | 214×123×13 mm | 450g | |
| | PTFE | Al-alloy | δ1.0 mm | |||
| | No Coating | Al-alloy | δ1.0 mm | |||
| | PTFE | Al-alloy | δ1.0 mm | Corrugated | ||
| | Golden Coating | Al-alloy | δ1.0 mm |
