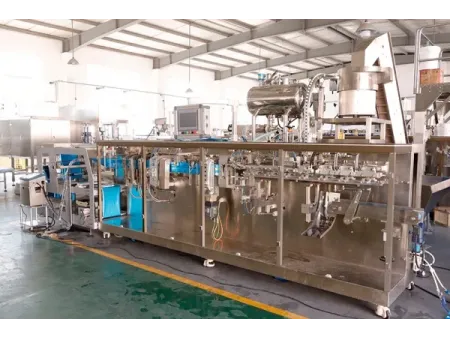

Spouted Stand-Up Pouch HFFS Packaging Machine, 1-Nozzle Filling
Horizontal form fill seal machine
These rollstock spouted stand-up pouch machines handle the whole packaging process on one line, from forming the stand-up pouch to filling the product and installing the spout automatically. The process starts with roll film and spout components, which are fed into the machine and shaped into bottom-gusset pouches, then filled, followed by precise spout insertion and welding under controlled conditions. Sealing and cutting are done in the same continuous, servo-controlled sequence, delivering finished, ready-to-use pouches that can stand upright and be used straight away.
| Performance features | Rollstock spouted stand-up pouch parameters | | | | |
| Pouch parameters | Min. pouch size | 75x85mm | 90×110mm | 110×150mm | 120mmx160mm |
| Max. pouch size | 130x200mm | 180×225mm | 240×320mm | 280x400mm | |
| Filling volume (max.) | 700ml | 1000ml | 2000ml | 2500ml | |
| Packaging speed (pouches/min) | ≤60 | ≤60 | ≤60 | ≤60 | |
| Machine specifications | Machine dimensions (L × W × H) | 6000mmx1200mmx1800mm | 6700mm×1200mm×1800mm | 7500mm×1200mm×1800mm | 8000mmx1200mmx1800mm |
| Operating conditions | Machine weight | 1800kg | 2100kg | 2400kg | 2800kg |
| Air consumption | 400L/min | 400L/min | 400L/min | 400L/min | |
| Main drive power | 9Kw | 9Kw | 9.5Kw | 9.5Kw |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern
In 2025, a food company in Guatemala purchased the 180SP spouted stand-up pouch packaging machine to pack 300 g tomato ketchup in pouches. The spouted stand-up pouch packaging equipment was set up for this format and has been running smoothly, supporting stable filling and clean sealing for their daily production.
