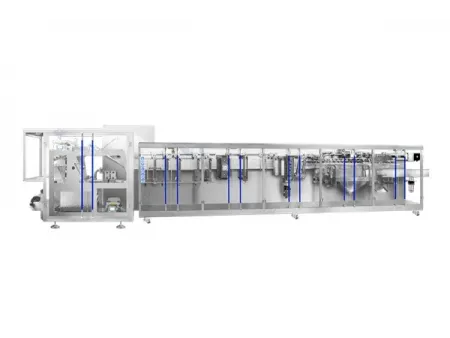

Spouted Stand-Up Pouch HFFS Packaging Machine, 2-Nozzle Filling

Request a Quote

Website: http://packingmachine-en.com/spouted-stand-up-pouch-hffs-packaging-machine-2-2-5.html

240SDP/280SDP/330SDP

Horizontal form fill seal machine

Rollstock spouted stand-up pouch packaging machines with dual-nozzle filling are suitable for high-efficiency production of high-quality ready-to-drink packs. These pouch packaging machines integrate a high-precision automatic spout feeding and pressing system, allowing each spout to be positioned and welded accurately and under clean conditions even at high speeds, fully synchronized with the filling and sealing process. These rollstock spouted stand-up pouch packaging machines are equipped with Siemens control systems on their key functions, which helps keep the whole operation stable and reduces the risk of unexpected stops, even during long and continuous production runs.

Maximum speed: 90 pouches per minute

Suitable for large-scale production of liquid and semi-liquid products such as juice, yogurt, jelly, and functional beverages, where stable filling, clean sealing, and high output are required.

Process Flow

Film unwinding
Bottom hole punching
Film forming
Registration mark detection
Bottom sealing
First vertical sealing
Second vertical sealing
Easy-tear notch forming
Hole punching
Servo pouch pulling
Cutting
Pouch clamping
Pouch opening
Air blowing
First filling
Secondary filling
Pouch expanding
Spout insertion
Heat sealing
Cooling sealing
Finished pouch discharge
Finished pouch conveying

Specifications

Performance features	Rollstock stand-up pouch parameters	180SD/Z/P	240SD/Z/P	280SD/Z/P	330SD/Z/P
Pouch parameters	Min. pouch size	70x110mm	90x125mm	90x125mm	90x125mm
	Max. pouch size	90x225mm	120x250mm	140x250mm	165x250mm
	Filling volume	300ml	500ml	500ml	700ml
	Packaging speed	60-120	60-120	60-100	60-90
	Rollstock film thickness	70-150μ	70-150μ	70-150μ	70-150μ
	Max. rollstock film outer diameter	500mm	500mm	500mm	500mm
Machine specifications	Rollstock film core inner diameter	70-80mm	70-80mm	70-80mm	70-80mm
	Machine dimensions (L × W × H)	6900x970x1450mm	7200x970x1460mm	8500x1100x1460mm	9500x1100x1460mm
	Machine weight	2100kg	2500kg	2500kg	2500kg
Operating conditions	Operating temperature	﹣10℃- 50℃	﹣10℃- 50℃	﹣10℃- 50℃	﹣10℃- 50℃
	Operating humidity	Less than 85%	Less than 85%	Less than 85%	Less than 85%
	Power supply	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ	AC380V, 50HZ
	Air pressure	0.6-0.7Mpa	0.6-0.7Mpa	0.6-0.7Mpa	0.6-0.7Mpa
	Air consumption	400L/min	400L/min	400L/min	400L/min
	Main drive power	8.8kw	9.8kw	12.8kw	15.8kw

Optional Functions

Zipper opening

Pouch hole punching

Sombrero hole (butterfly hole)
Round hole
Special-shape punching
Arc hole / Curved slot hole
Euro hole

Coding options

Hot stamp coding
Inkjet printing
Laser marking

Sealing patterns

Grid pattern
Dotted pattern
Plain/flat pattern
Vertical rib pattern

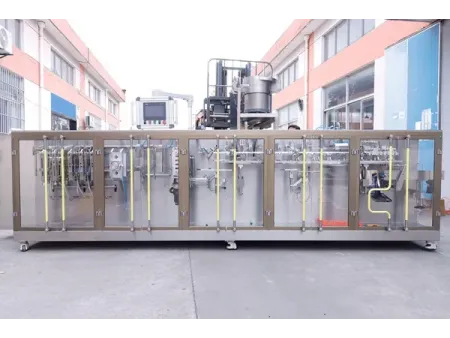

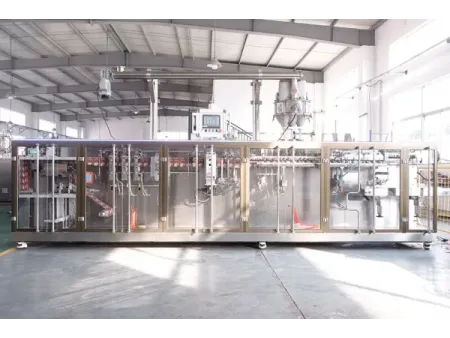

Details

Customer Case Studies

For their ketchup products, a food company supplying the Yemen and Saudi markets chose a rollstock stand-up pouch machine with straight spout to pack ketchup in small pouches with a capacity of 50–70 g. The pouch packaging machine our client purchased was ideal for the products they wanted to handle, and it has been running smoothly, delivering consistent fills and neat spout sealing in daily production.

Can rollstock packaging machines work with inkjet or thermal transfer printers for date coding?

Yes. They can be easily integrated with inkjet or thermal transfer coding systems, allowing production dates, batch numbers, and other information to be printed clearly and consistently during the packaging process.
