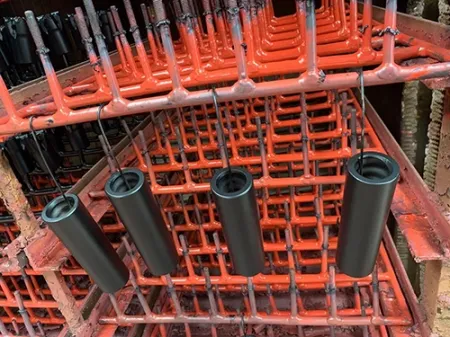

- Thread types: R thread, T thread
- Material: Medium-carbon alloy steel
Typical Applications

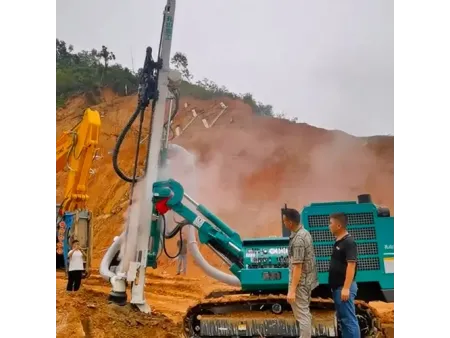

Underground mining, construction and foundation works, road and infrastructure construction

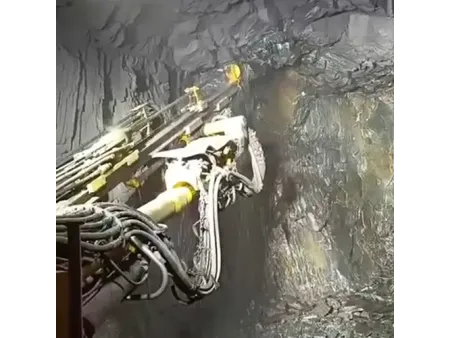

Underground mining operations
Piling and foundation drilling
Technical Specifications
| Model | Thread A | Thread B | Outer diameter | Length | Weight, kg | ||
| mm | inch | mm | inch | ||||
| | R32 | R25 | 45 | 1 3/4'' | 170 | 6 57/64'' | 1 |
| | R32 | R28 | 45 | 1 3/4'' | 170 | 6 57/64'' | 0.95 |
| | R38 | R65 | 55 | 2 5/32'' | 180 | 7 1/8'' | 1.85 |
| | T38 | R32 | 55 | 2 5/32'' | 180 | 7 1/8'' | 2 |
| | T38 | R38 | 55 | 2 5/32'' | 190 | 7 33/64'' | 1.85 |
| | R38 | R38 | 55 | 2 5/32'' | 170 | 6 57/64'' | 1.7 |
| | T38 | T38 | 55 | 2 5/32'' | 190 | 7 33/64'' | 1.95 |
| | T45 | T45 | 63 | 2 15/32'' | 210 | 8 17/67'' | 3.1 |
| | T45 | T45 | 66 | 2 19/32'' | 210 | 8 17/67'' | 3.5 |
| | T51 | T51 | 72 | 2 7/8'' | 235 | 9 1/4'' | 5.2 |
| | T51 | T51 | 76 | 3'' | 235 | 9 1/4'' | 5.7 |
How do I order the correct coupling sleeve?
When ordering a coupling sleeve, the following information should be provided: Thread type at both ends of the coupling sleeve, outer diameter of the coupling sleeve. These parameters must match the thread specifications and outer diameters of the drilling components to be connected.
What is the function of a coupling sleeve?
Coupling sleeves serve the following functions in top hammer drilling systems:
- Connecting drill rods: The threads at both ends of the coupling sleeve correspond to the threads of the drill rods being connected, and the sleeve outer diameter matches the drill rod diameter to ensure proper alignment and torque transmission.
- Connecting different drilling components: Coupling sleeves are also used to connect drill rods to shank adapters or drill bits, allowing components with different thread types to be effectively combined into a single drilling system.
