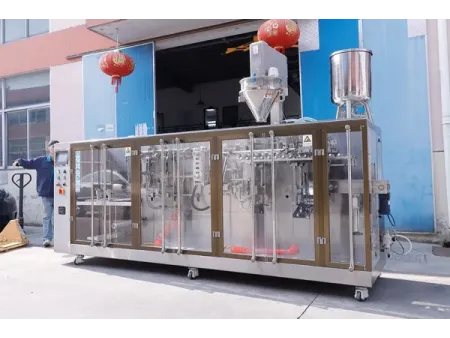

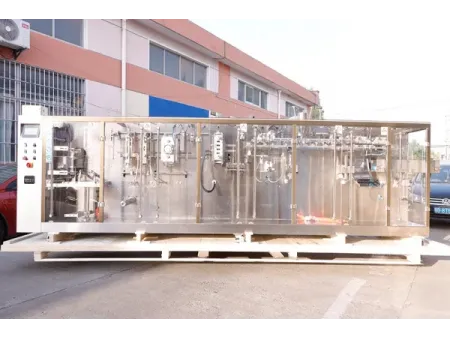

Zipper Pouch HFFS Packaging Machine, 1-Nozzle Filling
Horizontal form fill seal machine
This rollstock zipper pouch machine is designed to make pouches with a reclosable zipper, handling everything from film forming to zipper feeding, filling, and sealing in one smooth process. The zipper is guided and welded in place with high stability, so it stays firmly bonded to the pouch and provides a tight seal that can be opened and closed many times. At the same time, accurate filling and optional vacuum or nitrogen flushing help protect the product and keep it fresh for longer on the shelf.
| Rollstock zipper pouch parameters | | | | | |
| Pouch parameters | Min. pouch size (W × H) | 60x80mm | 75×85mm | 75x85mm | 70x85mm |
| Max. pouch size (W × H) | 130x180mm | 180x225mm | 240x225mm | 280x225mm | |
| Max. filling volume | 160ml | 400ml | 1000ml | 1500ml | |
| Packaging speed (pouches/min) | ≤60 | ≤60 | ≤50 | ≤50 | |
| Machine specifications | Machine dimensions (L × W × H) | 2850x920x1460mm | 4000mm×970mm×1450mm | 4500mmx970mmx1460mm | 4800mmx970mmx1460mm |
| Total machine weight | 1500kg | 1000kg | 2100kg | 2300kg | |
| Operating conditions | Air consumption | 200L/min | 300L/min | 300L/min | 300L/min |
| Main power | 3.5kw | 5.5Kw | 5.5Kw | 5.5Kw | |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern
A technology-focused machinery company based in Dongguan selected this rollstock packaging solution to enhance their operations. The rollstock zipper pouch packaging equipment has shown stable performance since start-up, with no post-installation issues reported. Ongoing technical exchanges with their team reflect both their satisfaction and their confidence in the line’s reliability.
