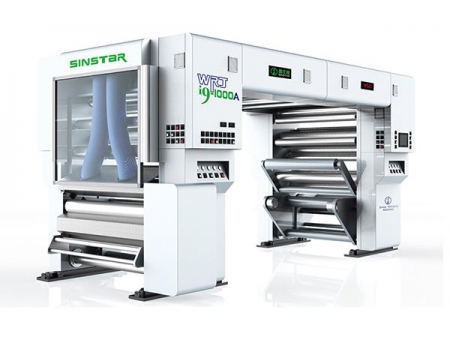

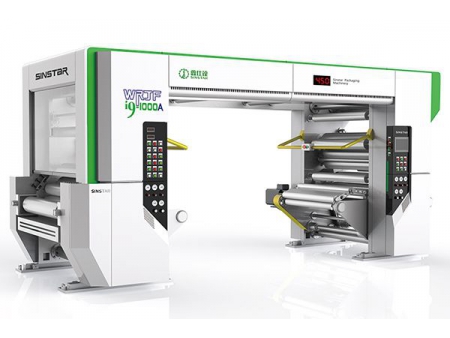

Solventless Laminator TRI-1300A

Solventless Laminator  TRI-1300A
Solventless Laminator  TRI-1300A
Request a Quote

Three-layer lamination machine for use with solventless adhesives, shorter web path without undesirable adhesive penetration

Our SINSTAR three-layer solventless lamination machine is mainly applied to produce flexible packaging laminates for the a multitude of market sectors including food, pharmaceuticals, personal care items, anti-static materials, insulation materials, building materials and decoration. As the lamination process does not involve any solvents and eliminates any possible penetration of adhesives through the webs, the solventless lamination machine can be a very suitable choice for manufacturing high-quality aluminum foils and packaging laminates free from adhesion of rewound layers. The solvent-free laminator is also capable of producing packaging films featuring perfect protection against moisture and any transport of matter to guarantee the best freshness of packaged goods. If you are considering refined packaging for luxury cosmetics or eco-friendly packaging, this solventless lamination machine will also be a satisfying option for that.

Basic Information
  • Layer Number of Laminated Film: 3 layers
  • Max. Lamination Width: 1350 mm
  • Max. Unwind/Rewind Diameter: 800 mm
  • Temperature Control: 5
  • Adhesive Mixer: 2 (WRJ5-2)
  • Dimensions (L×W×H): 8000×2850×2400 300mm
Substrate Types
  • BOPP: 15-50µm
  • VMPET: 6-30µm
  • PE: 16-130µm
  • PET: 6-30µm
  • VMCPP: 18-60µm
  • CPP: 20-100µm
  • AL: 6-50µm
  • PA: 13-30µm
  • Paper: 30-100gsm
Specifications
Machine Model TRI-1300A Solventless Lamination Machine

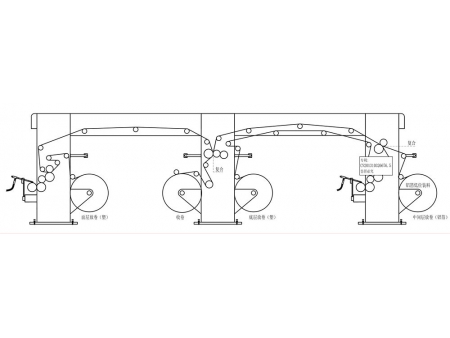

Layout: Three stations (facing machine from left to right)
Station 1: coating unit (first coating, surface layer unwinding)
Station 2: lamination unit (rewinding, first lamination, bottom layer unwinding)
Station 3: coating & lamination unit (second coating, second lamination, intermediate layer unwinding)
Max. Machine Speed 400m/ min
Lamination Method Solventless lamination
Lamination Speed 20-400m/min (depending on the properties of substrates and adhesives)
Lamination Width 600 mm~1350 mm (shaftless chucking)
Max. Unwind Diameter 600 mm
Max. Rewind Diameter 800 mm
Web Width 1350 mm
Paper Core Length 1350 mm
Paper Roller Diameter 3 inches: 76mm (ID) × 96mm (OD)
Guide Roller Length 1450mm
Coating Weight (solventless adhesive) 0.8~2.3g/m²
Layer Number of Laminated Film 3 layers
Temperature of Nip Pressure Roller Room temperature -- 60℃
Temperature of Steel Coating Roller Room temperature -- 50℃
Total Power Approximately 1240 kW
Power Supply Three-phase five-wire, 380V±5%, 50Hz
Clean Air Pressure 0.6Mpa
Machine Color Ivory white
Machine Weight Approximately 10000 kg
Dimensions (L×W×H) 8000 mm×2850 mm×2400 300mm
Features
  • Three-layer lamination, without unwanted penetration of adhesives through the webs
  • Short web path
  • No adhesives coated on aluminum foils
  • Loading aluminum foils at lower position
  • Shorter delivery cycle
  • Higher efficiency
  • Lower labor intensity
  • Alternatives to two-layer laminates
FAQs

The solventless lamination machine specializes in producing high-quality laminated aluminum foils and packaging laminates without unwanted adhesive penetration into the web structure, and offers eco-friendly solutions to the production of laminated films with its guaranteed solventless lamination technology.

This type of solventless laminators are mainly distributed in industries engaged in the production of flexible packaging for food, pharmaceuticals, anti-static materials, insulation materials, etc.

The workable materials for this laminator are foil tapes, BOPP films, PET films and more.

The machine is able to produce 3-layer laminates.

Our company has been producing solventless lamination machines for nearly twenty years.

Yes, we can offer service based on your personal requirements for lamination.

Temperature controls and adhesive mixers will be supplied together with the solventless laminator when you place the order.
